Cable glands

Cable glands with accessories such as caps, nuts, and seals are used to seal processed places in the enclosure, prevent the cable from twisting, protect it against sharp walls of milled holes, especially in aluminum housings, reduce the risk of cable tearing, and ensure the correct operation of devices in a specific electromagnetic environment (EMC versions of cable glands).

Characteristic features:

Pg and metric plastic cable glands

BF/MBF / BFK / MBFK: - Pg/Metric - IP 66/68, 5 bar (30 min.) / DIN EN 60529 - Polyamide, light grey, similar to RAL 7035 - Integrated strain relief - Temperature range: -20°C to +100°C - VDE certificate (MBF only): no. 40047604 - Integrated anti-kink protection (BFK/MBFK).

POZ / MPOZ / POZB / MPOZB: - Pg/Metric - IP 65 / DIN EN 60529 - Polyamide, light grey, similar to RAL 7035 - Integrated strain relief - Temperature range: -30°C to +100°C - Integrated anti-kink protection (POZB/MPOZB)

MZI / PST: - Pg - IP 65 / DIN EN 60529 - Polyamide, light grey, similar to RAL 7035 - Integrated strain relief - Temperature range: -20°C to +100°C - MZI for internal mounting with a flat external assembly of 3 mm - With the PST, pre-configured cables can be completely mounted in the enclosure

DZP / TZP / KK / GD: - Half cable glands - Pg - IP 65 / DIN EN 60529 - Polyamide, light grey, similar to RAL 7035 (DZP/TZP) - Hostaform (KK)

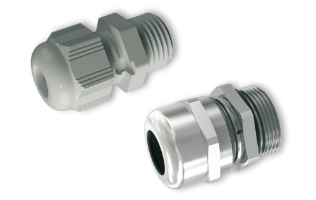

Pg and metric brass cable glands, including EMC versions

MSS/ MSD / MSKBF: - Pg - IP 65 / DIN EN 60529 (MSD/MSK) - IP 54 / DIN EN 60529 (MSS) - Brass, nickel-plated - Integrated strain relief (MSK) - Temperature ranges: - 20°C to +100°C (MSK), - 30°C to +110°C (MSS/MSD) MSBF: - Metric - IP 66 / 68, 5 bar (30 min.) / DIN EN 60529 - Brass, nickel-plated - Integrated strain relief - Anti-twist protection - Temperature range: -20°C to +100°C

MEMV: - Metric - IP 66 / 68, 5 bar (30 min.) / DIN EN 60529 - Brass, nickel-plated - Integrated strain relief - Anti-twist protection - Temperature range: -20°C to +100°C - For leads with shielding - Fast, easy EMC connection of the screen mesh via the contact spring and the intermediate connection with the enclosure potential. - The protective shield is permanently formclosed over a large area of the enclosure

Specialized cable glands in plastic and brass versions with a cut sealing insert for mounting cables with an RJ45 or USB connector

Cable gland with slotted sealing insert, polyamide light grey, IP 66/68

Cable gland with slotted sealing insert, nickel-plated brass, IP 66/68

Plug-in cable gland

Plug-in cable gland, polyamide light grey, IP 66/68

Metric blind plugs

Plastic and brass nuts

Sealing rings
