Pflitsch bg 225ms tri - EMC cable gland
Pflitsch bg 225ms tri - EMC cable gland
Pflitsch bg 225ms tri - EMC cable gland
Pflitsch bg 225ms tri - EMC cable gland

Pflitsch bg 225ms tri - EMC cable gland

MaterialNickel-plated brass
ThreadM25
Sealing range in millimeters11-20 mm
Thread length in millimeters7.5
Ingress ProtectionIP66IP69
Special featuresEMC
Thread
Special features
Size
uniwersalny
excl. VAT
33,90 zł
gross
14 days for easy returns
Find out in which store you can check the product and buy it right away
Pflitsch bg 225ms tri - EMC cable gland
Pflitsch bg 225ms tri - EMC cable gland
Thread:M25
Special features:EMC
uniwersalny
Safe shopping
Compare
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Pflitsch
Symbol
bg 225ms tri
Producer code
5900000625607
Series
blueglobe TRI
MaterialMaterial
Nickel-plated brass
Insert material
Thermoplastic elastomer - TPE
ThreadThread
M25
Sealing range in millimetersSealing range in millimeters
11-20 mm
Thread length in millimetersThread length in millimeters
7.5
Product height in millimetresProduct height in millimetres
36.5
Product width in millimetersProduct width in millimeters
33
Ingress ProtectionIngress Protection
IP66
IP69
ColourColour
Unpainted
Temperature rangeTemperature range
-40...+130°C
Straight / Angular
Straight
Search

Pflitsch bg 225ms tri

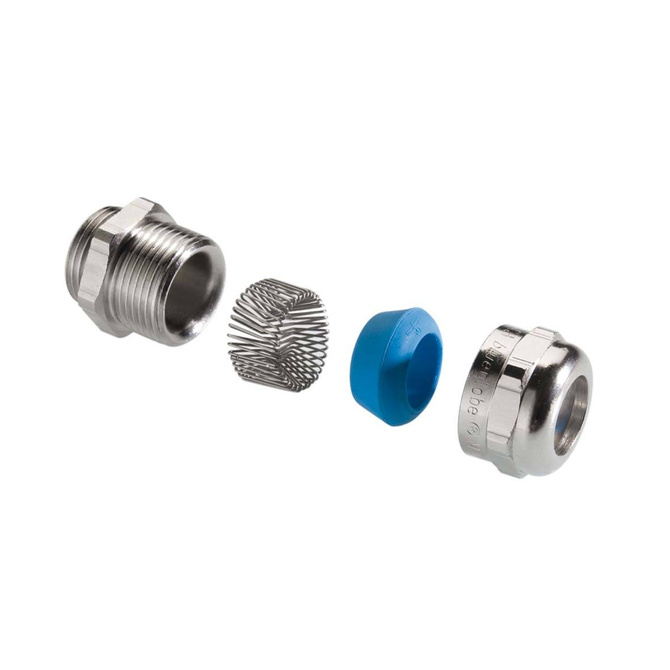

Bg 225ms tri cable gland by Pflitsch, made from nickle-plated brass, it eliminates EMC radiation. Thread M25, clamping range 11-20 mm, sealing insert made from TPE. Protection degree: IP68/69.

Stainless steel variant with a 15 mm thread is also available on demand.
