Euromas Aluminium

( number of products: 114 )

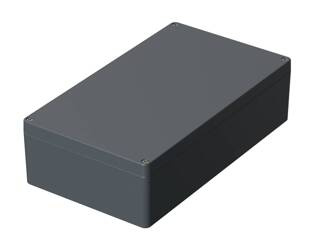

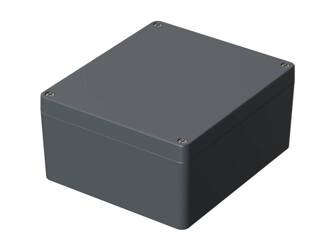

Euromas Aluminium is a classic line of enclosures offered by Bopla in 43 sizes. The housings are made of high-quality G Al. Si 12 aluminum alloy with attention to the quality of gasket assembly, which translates into meeting stringent standards for the protection of customers' end devices.

The precisely placed neoprene gasket ensures a high degree of protection, minimum IP66 according to DIN EN 60529. Alternatively, higher temperature resistance can be achieved by using a silicone gasket. A special version of the EMC seal is available on request, ensuring a conductive connection between the cover and the base. The housing meets the requirements of R1 or R7 in accordance with the DIN EN 45545-2 standard with a hazard level of HL3 and UL. E 196 706 (details in the material data sheets). The IK09 impact protection level has been achieved according to the IEC 62262 standard. It is possible to deliver unpainted housings with a gasket in the cover and protection with an additional anti-corrosion coating (so-called surtec coating). A waterproof version (SWB) is available on request, while the standard version meets railway requirements. The Euromas Aluminum series also has numerous matching mounting accessories such as hinges, plates and wall brackets (including those mounted to the mast).


Characteristic features of Euromas Aluminium housings:



A wide range of enclosure types
A wide range of enclosure types that can be adapted to various project requirements.
Precisely placed neoprene seal
Precisely placed neoprene seal.
Optional silicone and EMC seals
Possibility of using silicone seals and EMC versions.
Installation of front plates and TS 35 rails in the enclosure base
Installation of front plates and TS 35 rails in the enclosure base.
Versions with a transparent lid
Versions with a transparent lid.
Hinges with mounting screws
Hinges with mounting screws.
A waterproof version (SWB) is available on request
A waterproof version (SWB) is available on request, while the standard version meets railway requirements.
Can be painted in other colors
Can be painted in colors other than standard gray, similar to RAL 7001.
Optional mounting accessories
Numerous mounting accessories.





In our online store you will find a full range of standard Bopla enclosures from the Euromas Aluminium line, of which Soyter Components is an authorized distributor in Poland. Information about the availability of non-standard dimensions or colors is available at: handlowy@soyter.pl.



Application examples

Euromas Aluminium example usage no. 1
Euromas Aluminium example usage no. 2
Euromas Aluminium example usage no. 3
Show all categoriesHide categories

Additional services

Experience and hundreds of initiatives implemented together with our clients allow us to offer a number of additional services covering each of the purchased enclosures. Our projects bring the product closer to its final form, accelerating the process of integrating the finished project. Specialists cooperating with us can carry out the necessary modifications for you in the field of:

  • machinal processing,
  • lacquering,
  • printing,
  • engraving,
  • electronics integration.
mechanical_processing

By selecting the right enclosure for your requirements and making the necessary modifications, we make sure that you get the product you are looking for. The great advantage that we have been able to build based on many years of experience is the ability to properly optimize costs while maintaining high quality standards. With the services we offer, we shorten the delivery time and reduce transport costs as well as the risk of rejects or the need to make corrections.

The scope of mechanical processing includes such activities as: milling, drilling, cutting aluminum profiles or threading. Modern machinery and CNC devices operated by highly qualified employees are not the only advantage of the additional service. Another of the machining processes that we offer is welding of plastics. Plastic enclosures supplied by Bopla are equipped with sleeves for mounting mounting plates or PCBs. It happens, however, that additional fastening is needed in a different place than provided by the manufacturer. We can then propose to weld the spacer pin at the appropriate point thanks to a special welding method.



surface_improvement

In our catalog of services, we also have the option of improving the surface and aesthetics of the enclosures. Digital printing, screen printing and pad printing, laser marking, engraving or finally, lacquering and powder coating will give the housing an individual character. We can apply any customer's design to the housing, from the company logo, through appropriate markings, to specific operating instructions. The concept of surface improvement covers technical processes that improve product properties, e.g. protecting the enclosure with EMC coating by vapor deposition of appropriate coatings (metallization), lacquering with conductive copper lacquer or using additional contact seals.

It is worth mentioning that we do not limit ourselves to the personalization of enclosures. It also applies to, for example, front panels, profiles and selected accessories.



integration

The last group among the services we offer is the widely understood integration of electronics inside the enclosures. We support in the integration of: electronic modules, electromechanical components, touch screens, displays, membrane keyboards, cables, EMC shielding. At the same time, we offer conventional forms of assembly, including the most popular ones: surface mount (SMT), through-hole (THT) and various soldering and bonding techniques. By using our component integration service, we minimize our customers' own workload and take over the risk of faulty production. In addition to the integration of membrane keypads or display solutions, we also have the competence to offer the right product tailored to individual requirements (customized).



For more information on additional services or a detailed quote, please contact us directly.
