Uninorm

( number of products: 35 )

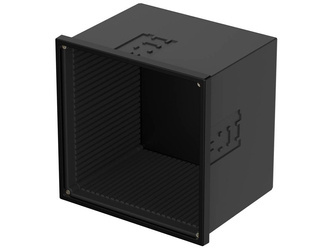

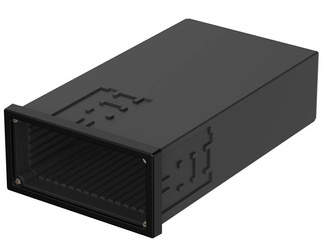

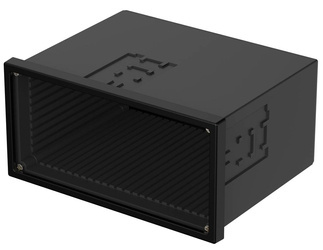

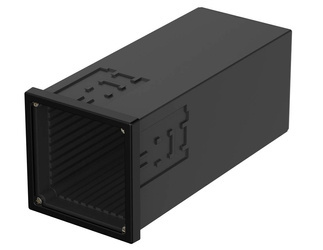

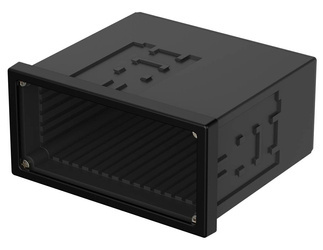

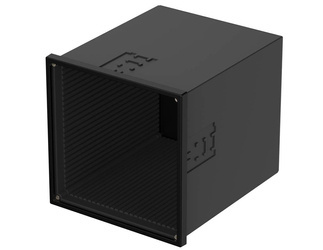

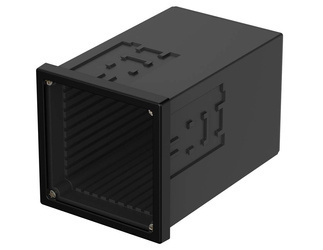

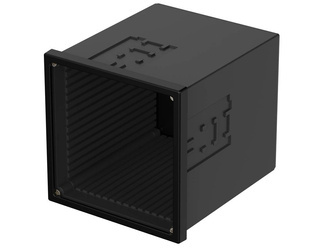

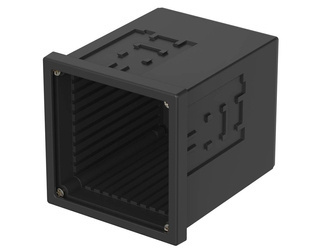

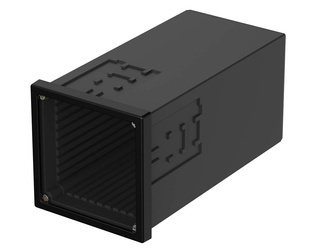

The Uninorm line of enclosures are classic plastic panel enclosures in 36 sizes compatible with the dimensions of control cabinets in accordance with the DIN IEC 61554 standard. Thin-walled, but at the same time durable The housing body is made of glass fiber reinforced plastic and provides a large installation space for PCBs. The front panels are available in a variety of materials, including masking frames and, on request, even a crystal clear hinged cover. Unauthorized access can be prevented with the optional cylinder lock

Three solutions are available for mounting the housing on the panel: standardized mounting latch acc. DIN 43835, screw clamp and spring latch element. The back panel is attached to the housing with screws, making it easy to remove for servicing. PCBs are mounted in the housing using horizontal or vertical guide grooves. Optional gaskets are available to seal the front of the housing and gaskets between the housing and the panel or control cabinet. If flexible, transparent PVC covers are used, buttons and switches can be operated through the cover and the protection class is IP65.



The characteristics of the Uninorm line are:



Compatibility with cabinet dimensions
Compatibility with cabinet dimensions.
Possibility of flush mounting the keyboard from the front. PCB in housing mounted vertically or horizontally in the mounting grooves
Possibility of flush mounting the keyboard from the front. PCB in a housing mounted vertically or horizontally in mounting grooves.
Different types of fronts
Different types of fronts.
Sealable
Possibility of sealing.
Different types of latches securing the housing to the panel
Various types of latches that secure the case to the panel.





In our store you will find a full range of standard Bopla brand housings from the Uninorm line, of which Soyter Components is an authorized distributor in Poland. For information on the availability of custom sizes or colors, please visit: handlowy@soyter.pl.



Sample applications

Uninorm application example usage no. 1
Uninorm application example usage no. 1
Uninorm example application usage no. 1
    Show all categoriesHide categories

    Additional services

    Experience and hundreds of initiatives implemented together with our clients allow us to offer a number of additional services covering each of the purchased enclosures. Our projects bring the product closer to its final form, accelerating the process of integrating the finished project. Specialists cooperating with us can carry out the necessary modifications for you in the field of:

    • machinal processing,
    • lacquering,
    • printing,
    • engraving,
    • electronics integration.
    mechanical_processing

    By selecting the right enclosure for your requirements and making the necessary modifications, we make sure that you get the product you are looking for. The great advantage that we have been able to build based on many years of experience is the ability to properly optimize costs while maintaining high quality standards. With the services we offer, we shorten the delivery time and reduce transport costs as well as the risk of rejects or the need to make corrections.

    The scope of mechanical processing includes such activities as: milling, drilling, cutting aluminum profiles or threading. Modern machinery and CNC devices operated by highly qualified employees are not the only advantage of the additional service. Another of the machining processes that we offer is welding of plastics. Plastic enclosures supplied by Bopla are equipped with sleeves for mounting mounting plates or PCBs. It happens, however, that additional fastening is needed in a different place than provided by the manufacturer. We can then propose to weld the spacer pin at the appropriate point thanks to a special welding method.



    surface_improvement

    In our catalog of services, we also have the option of improving the surface and aesthetics of the enclosures. Digital printing, screen printing and pad printing, laser marking, engraving or finally, lacquering and powder coating will give the housing an individual character. We can apply any customer's design to the housing, from the company logo, through appropriate markings, to specific operating instructions. The concept of surface improvement covers technical processes that improve product properties, e.g. protecting the enclosure with EMC coating by vapor deposition of appropriate coatings (metallization), lacquering with conductive copper lacquer or using additional contact seals.

    It is worth mentioning that we do not limit ourselves to the personalization of enclosures. It also applies to, for example, front panels, profiles and selected accessories.



    integration

    The last group among the services we offer is the widely understood integration of electronics inside the enclosures. We support in the integration of: electronic modules, electromechanical components, touch screens, displays, membrane keyboards, cables, EMC shielding. At the same time, we offer conventional forms of assembly, including the most popular ones: surface mount (SMT), through-hole (THT) and various soldering and bonding techniques. By using our component integration service, we minimize our customers' own workload and take over the risk of faulty production. In addition to the integration of membrane keypads or display solutions, we also have the competence to offer the right product tailored to individual requirements (customized).



    For more information on additional services or a detailed quote, please contact us directly.
