Pflitsch bg 216ms tri - EMC cable gland
Pflitsch bg 216ms tri - EMC cable gland
Pflitsch bg 216ms tri - EMC cable gland
Pflitsch bg 216ms tri - EMC cable gland

Pflitsch bg 216ms tri - EMC cable gland

MaterialNickel-plated brass
ThreadM16
Sealing range in millimeters7-11 mm
Thread length in millimeters6
Ingress ProtectionIP66IP69
Special featuresEMC
Thread
Special features
Size
uniwersalny
excl. VAT
6,80 €
gross
14 days for easy returns
Find out in which store you can check the product and buy it right away
Pflitsch bg 216ms tri - EMC cable gland
Pflitsch bg 216ms tri - EMC cable gland
Thread:M16
Special features:EMC
uniwersalny
Safe shopping
Compare
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Pflitsch
Symbol
bg 216ms tri
Producer code
5900000524504
Series
blueglobe TRI
MaterialMaterial
Nickel-plated brass
Insert material
Thermoplastic elastomer - TPE
ThreadThread
M16
Sealing range in millimetersSealing range in millimeters
7-11 mm
Thread length in millimetersThread length in millimeters
6
Product height in millimetresProduct height in millimetres
31
Product width in millimetersProduct width in millimeters
22.2
Ingress ProtectionIngress Protection
IP66
IP69
ColourColour
Unpainted
Temperature rangeTemperature range
-40...+130°C
Straight / Angular
Straight
Search

Pflitsch bg 216ms tri

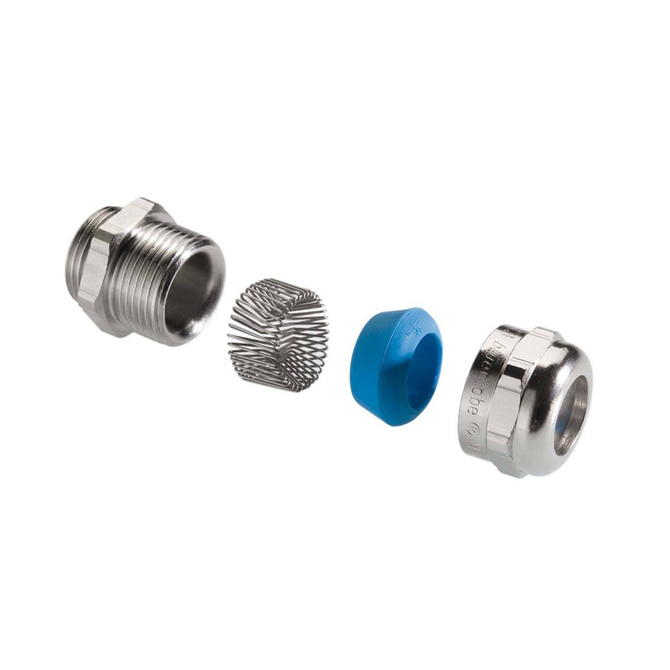

Bg 216ms tri cable gland by Pflitsch, made from nickle-plated brass, it eliminates EMC radiation. Thread M16, clamping range 7-11 mm, sealing insert made from TPE. Protection degree: IP68 (up to 15 bar), 69.

Stainless steel variant with a 15 mm thread is also available on demand.
