Pflitsch bg 27265ms/Cr 16lg - cable gland
Pflitsch bg 27265ms/Cr 16lg - cable gland
Pflitsch bg 27265ms/Cr 16lg - cable gland
Pflitsch bg 27265ms/Cr 16lg - cable gland

Pflitsch bg 27265ms/Cr 16lg - cable gland

MaterialChrome-platted brass
ThreadM72
Sealing range in millimeters41-54 mm
Thread length in millimeters16
Ingress ProtectionIP69IP68
Thread
Application features
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
Sold by:5pcs.
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Pflitsch
Symbol
bg 27265ms/Cr 16lg
Series
blueglobe - CR
MaterialMaterial
Chrome-platted brass
Insert material
Thermoplastic elastomer - TPE
ThreadThread
M72
Sealing range in millimetersSealing range in millimeters
41-54 mm
Thread length in millimetersThread length in millimeters
16
Product height in millimetresProduct height in millimetres
40
Product width in millimetersProduct width in millimeters
87
Ingress ProtectionIngress Protection
IP69
IP68
ColourColour
Unpainted
Temperature rangeTemperature range
-40...+130°C
CertificateCertificate
VG 88846-4
VG 88846-5
DIN 89280
Search

Pflitsch bg 27265ms/Cr 16lg

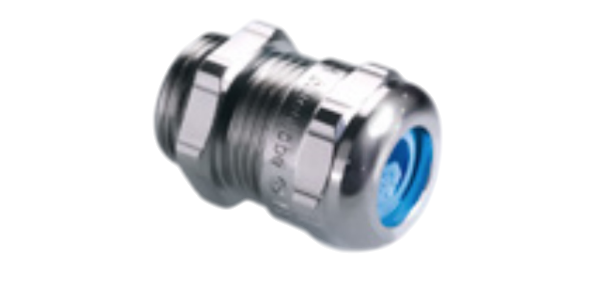

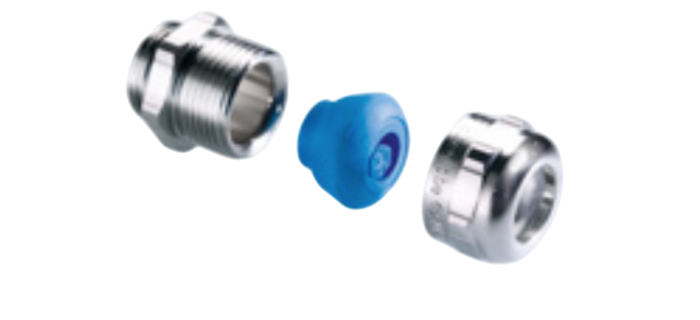

Bg 27265ms/Cr 16lg is a chrome-platted brass cable gland from blueglobe series by Pflitsch. Thread M72 complying with DIN 89280 marine standards, sealing range: 41-54 mm, flat sealing ring made of TPE and protection degree: IP68 (up to 15 bar), IP69. Operating temperatures from -40 to +130 degrees Celsius.

The cable gland meets VG 88846-4 and -5.
