Pflitsch bg 216ms - M16 cable gland
Pflitsch bg 216ms - M16 cable gland
Pflitsch bg 216ms - M16 cable gland
Pflitsch bg 216ms - M16 cable gland

Pflitsch bg 216ms - M16 cable gland

MaterialNickel-plated brass
ThreadM16
Sealing range in millimeters4-11 mm
Thread length in millimeters6
Ingress ProtectionIP66IP69
Thread
Special features
Size
uniwersalny
excl. VAT
2,00 €
gross
14 days for easy returns
Find out in which store you can check the product and buy it right away
Pflitsch bg 216ms - M16 cable gland
Pflitsch bg 216ms - M16 cable gland
Thread:M16
Special features:/
uniwersalny
Safe shopping
Compare
Catalogue sheet - bg 216ms
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Pflitsch
Symbol
bg 216ms
Producer code
5900000478098
Series
blueglobe - brass
MaterialMaterial
Nickel-plated brass
Insert material
Thermoplastic elastomer - TPE
ThreadThread
M16
Sealing range in millimetersSealing range in millimeters
4-11 mm
Thread length in millimetersThread length in millimeters
6
Product height in millimetresProduct height in millimetres
31
Product width in millimetersProduct width in millimeters
22.2
Ingress ProtectionIngress Protection
IP66
IP69
ColourColour
Unpainted
Temperature rangeTemperature range
-40...+130°C
Straight / Angular
Straight
Search

Pflitsch bg 216ms

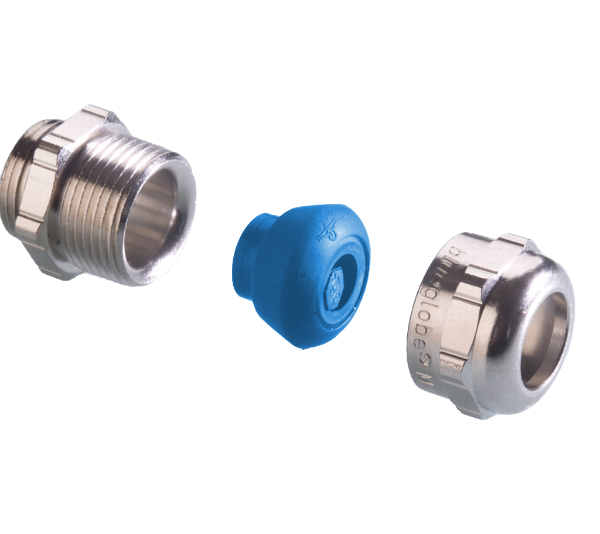

Bg 216ms is a brass cable gland from the Pflitsch blueglobe series. The gland provides gentle relief over a large area, good resistance to vibrations and a wide range of seals. The component is easy to identify. It has an M16 thread, a sealing range of 4-11 mm, a sealing insert made of TPE material, a ingress protection rating of IP68 (up to 15 bar), IP69 and UL certificate. Operaring temperature range of the cable gland reaches -40 ... +130 degrees Celsius.
