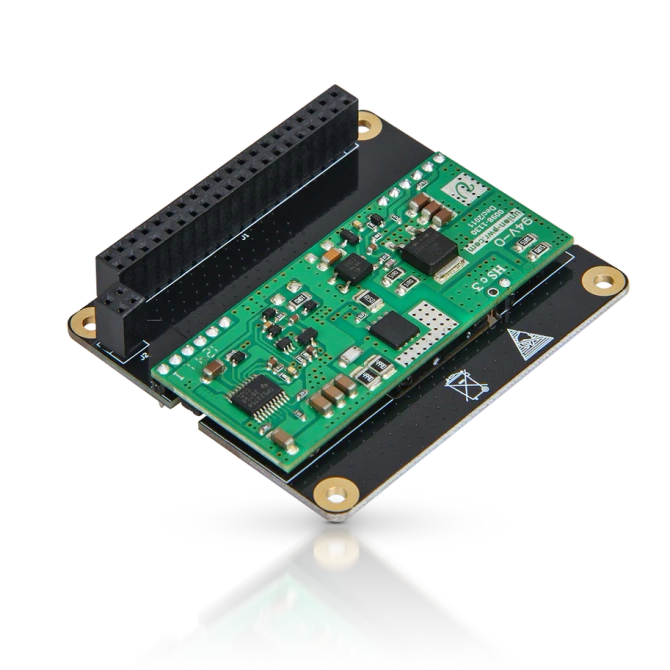

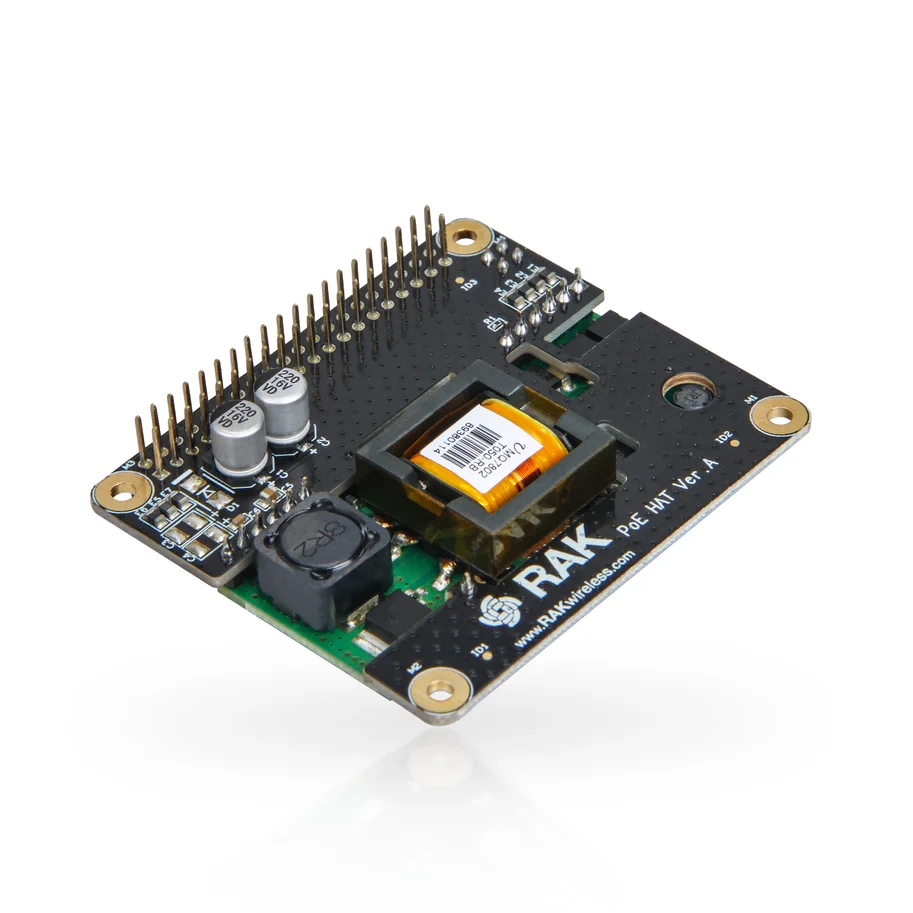

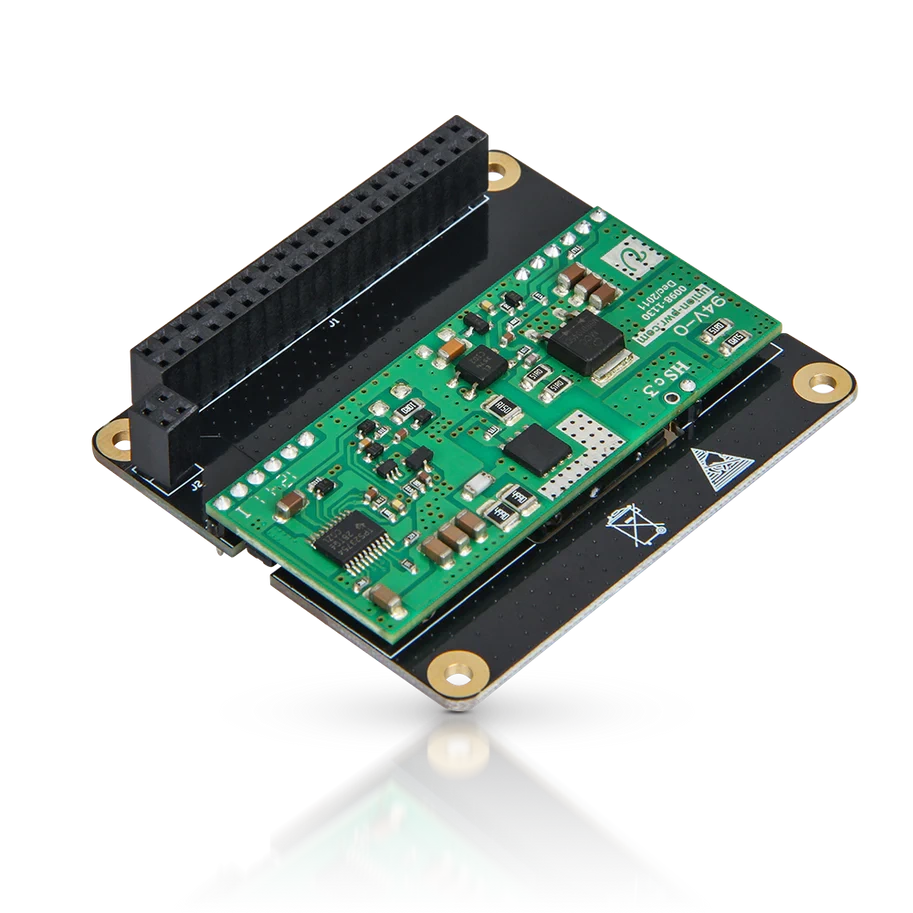

RAKwireless RAK9003 – PoE HAT for Raspberry Pi 3B+/4 with Power over Ethernet
RAKwireless RAK9003 – PoE HAT for Raspberry Pi 3B+/4 with Power over Ethernet
RAKwireless RAK9003 – PoE HAT for Raspberry Pi 3B+/4 with Power over Ethernet
RAKwireless RAK9003 – PoE HAT for Raspberry Pi 3B+/4 with Power over Ethernet

RAKwireless RAK9003 – PoE HAT for Raspberry Pi 3B+/4 with Power over Ethernet

Size
uniwersalny
excl. VAT
19,79 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
RAKwireless
Symbol
SKU: 610001
Temperature rangeTemperature range
-40...+85°C
Search

RAKwireless RAK9003 – PoE HAT for Raspberry Pi 3B+/4 with Power over Ethernet

The RAK9003 PoE HAT from RAKwireless is a Raspberry Pi add-on board designed to provide Power over Ethernet (PoE) functionality for Raspberry Pi 3 Model B+ and Raspberry Pi 4. It allows both power and data transmission through a single Ethernet cable (CAT5 or higher), simplifying installations in IoT, industrial, and network gateway applications. The module connects directly to the 40-pin GPIO header, making it ideal for LoRaWAN® gateways and other remote deployments requiring reliable power delivery and reduced cabling.

    Key Features:

  • Raspberry Pi HAT format with 40-pin GPIO connector – easy plug & play installation.
  • Supports IEEE 802.3af/at PoE standard (Mode A and Mode B) – up to 25 W power output (Class 0–4).
  • Wide input voltage range: 42 V – 57 V DC.
  • Output power: 5 V DC at up to 5 A.
  • High efficiency (~83% at 48 V input and 5 V/5 A load) with 1.5 kV isolation between input and output.
  • Operating temperature range: –40 °C to +85 °C – suitable for industrial environments.

    Applications:

  • Building LoRaWAN® gateways or Helium hotspots powered through Ethernet using Raspberry Pi 3B+ or Raspberry Pi 4.
  • IoT, Smart City, and educational projects where power and network connectivity are provided via a single cable.
  • Deployments in remote or constrained spaces where PoE simplifies installation and improves reliability.

    Package Includes:

  • 1 × RAK9003 PoE HAT
  • 1 × 40-pin GPIO connector compatible with Raspberry Pi

The RAK9003 PoE HAT offers a professional and efficient solution for powering Raspberry Pi systems over Ethernet. It enhances reliability and simplifies installation in industrial, IoT, and LoRaWAN® gateway applications.
