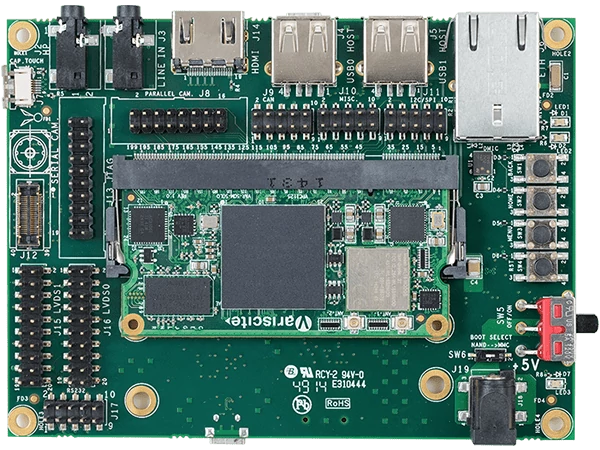

Variscite VAR-SOM-SOLO Evaluation Kit w/ Linux - evaluation board
Details
Parametry
Find similar products
Brand
Symbol
VAR-DVK-SOLO_LO
Producer code
5900000834900
Series
Technology
BT 5.1
WiFi 4
Ethernet Cat5e
Voltage
3.3V
Product width in millimeters
33
CPU clocking (max)
1000 MHz
Product length in millimeters
67.8
Temperature range
0...+70°C
Number of cores
1
Processor
NXP iMX6
RAM memory
1 GB
Operating system
Linux
eMMC memory
8 GB
UART interfaces
5
I2C interfaces
3
SPI interfaces
3
NAND memory
512 MB
Evaluation boards display
Yes
USB interfaces
2.0 x2
Longevity
until 2035
Variscite VAR-SOM-SOLO Evaluation Kit w/ Linux
The VAR-SOM-SOLO is a high performance System-on-Module. It provides an ideal building block that easily integrates with a wide range of target markets requiring rich multimedia functionality, powerful graphics and video capabilities, as well as high-processing power. Compact, cost effective and with low power consumption, VAR-SOM-SOLO secures an Intel Atom performance level.
- WiFi 4 / BT 5.1 / Ethernet Cat5e
- Operational temperature range: 0...+70°C
- Size: 67.8 x 33 mm
- CPU Clocking: 1000 MHz
- Memory: 1 GB RAM / 512 MB NAND / 8 GB eMMC
SoM's key features:
- SOM & Carrier board
- Debug Cable
- Antenna
- Boot/Rescue SD Card
- Display & Touch Panel
- Ethernet Cable
- 5V Power Supply
- Carrier Board Design Package
- Embedded operating system: Linux
The kit includes:
The product includes the System-on-Module VAR-SOM-SOLO in a stock version: VAR-SOM-SOLO_1000C_1024R_512N_8G_AC_EC_TP_WB_CT. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
