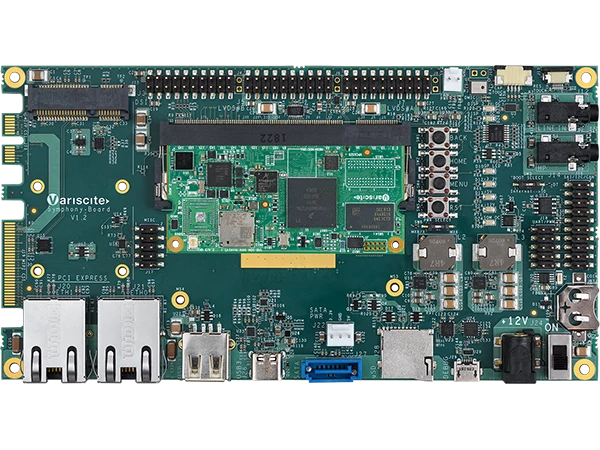

Variscite VAR-SOM-MX8M-NANO Evaluation Kit w/ Linux

The VAR-SOM-MX8M-NANO is a cost-optimized System on Module (SoM) / Computer on Module (CoM) based on NXP’s i.MX 8M Nano, 1.5GHz Quad-core Cortex-A53™ plus 650MHz Cortex-M7™. The SoM offers an ideal solution for cost-sensitive designs that require power-efficiency and high-performance graphics as well as for general-purpose applications. This highly integrated platform’s connectivity options include certified single-band 802.11 b/g/n or dual-band 802.11 ac/a/b/g/n, BT5.2/BLE, GbE and USB2.0.

SoM's key features:

• WiFi 5 / BT 5.2 / Ethernet Cat5e
• Operational temperature range: 0...+70°C
• SoM size: 67.8 x 33 mm
• CPU Clocking: 1.5 GHz
• Memory: 1 GB RAM / 16 GB eMMC

The kit includes:

• SOM & Carrier board
• Debug Cable
• Antenna
• Boot/Rescue SD Card
• 7″ WVGA Display & Touch Panel
• Ethernet Cable
• 12V Power Supply
• Carrier Board Design Package
• Embedded operating system: Linux

The product includes the System-on-Module VAR-SOM-MX8M-NANO in a stock version: VAR-SOM-MX8MNQ_1500C_1024R_16G_AC_EC_LD_TP_CN_WBD_CT. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
