Variscite VAR-SOM-MX8M-MINI Evaluation Kit w/ Android

VAR-SOM-MX8M-MINI is a highly scalable, low power System on Module (SoM) based on NXP’s i.MX 8M Mini with up to 1.8GHz Quad-core ARM Cortex-A53™ plus 400MHz Cortex-M4™ real-time processor and up to 4 GB DDR4. The VAR-SOM-MX8M-MINI supports advanced features and a variety of connectivity options, including integrated HW engines supporting 1080p video encoding and decoding, 2D and 3D graphics, HQ audio, integrated certified single band 802.11 b/g/n or dual-band 802.11 ac/a/b/g/n, integrated CAN bus, LVDS, and a variety of additional interfaces.

SoM key features:

• WiFi 5 / BT 5.2 / Ethernet Cat5e
• Operational temperature range: 0...+70°C
• SoM size: 67.8 x 33 mm
• CPU Clocking: 1.8 GHz
• Memory: 2 GB RAM / 16 GB eMMC

The kit includes:

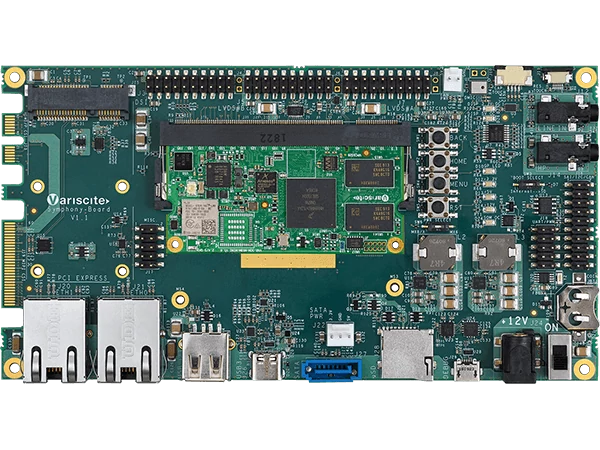

• SOM & Carrier board
• Debug Cable
• Antenna
• Boot/Rescue SD Card

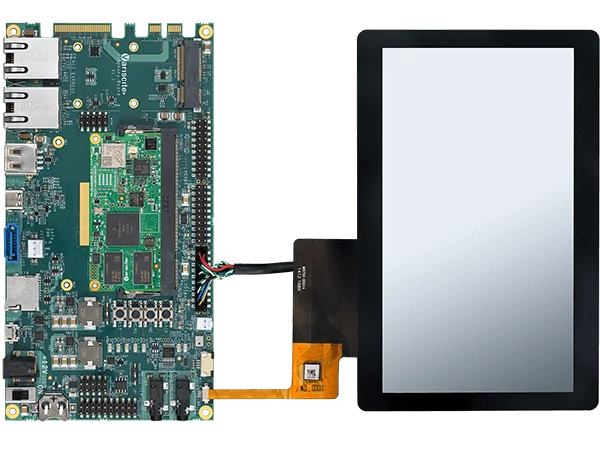

• 7″ WVGA Display & Touch Panel
• Ethernet Cable
• 12V Power Supply
• Carrier Board Design Package
• Embedded operating system: Android

The product includes the System-on-Module VAR-SOM-MX8M-MINI in a stock version: VAR-SOM-MX8MMQ_1800C_2048R_16G_AC_EC_LD_TP_CN_WBD_CT. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
