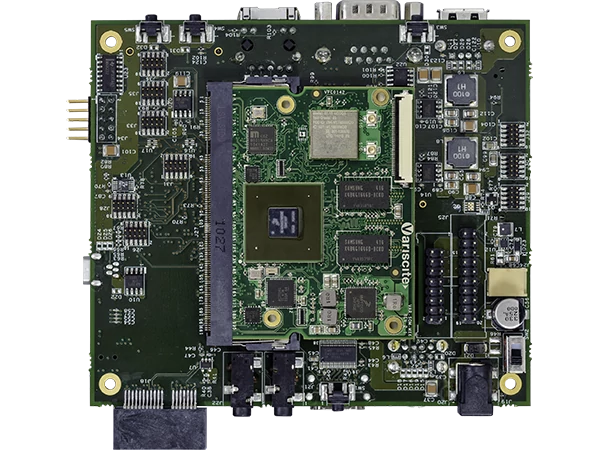

Variscite VAR-SOM-MX6 Evaluation Kit w/ Linux - evaluation board
Details
Parametry
Find similar products
Brand
Symbol
VAR-DVK-MX6_V2_PRO_LO
Producer code
5900000717128
Series
Technology
WiFi 4
BLE 5.1
Ethernet Cat5e
Voltage
3.3V
Product width in millimeters
51.5
CPU clocking (max)
1000 MHz
Product length in millimeters
67.8
Temperature range
0...+70°C
Number of cores
4
Processor
NXP iMX6
RAM memory
1 GB
Operating system
Linux
eMMC memory
8 GB
UART interfaces
5
I2C interfaces
3
SPI interfaces
3
NAND memory
512 MB
Evaluation boards display
Yes
USB interfaces
2.0 x2
Longevity
until 2035
Variscite VAR-SOM-MX6 Evaluation Kit w/ Linux
The VAR-SOM-MX6 SoM is based on a Cortex-A9 processor and supports WiFi/BT with optional Dual-Band 2.4 / 5 GHz and MIMO. The SoM can display 1080p video and has graphics acceleration.
- WiFi 4 / BT 5.1 / Ethernet Cat5e
- Operational temperature range: 0...+70°C
- SoM size: 67.8 x 51.5 mm
- CPU Clocking: 1000 MHz
- Memory: 1 GB RAM / 512 MB NAND / 8 GB eMMC
SoM's key features:
- SOM & Carrier board
- Debug Cable
- Antenna
- Boot/Rescue SD Card
- Display & Touch Panel
- Ethernet Cable
- 12V Power Supply
- Carrier Board Design Package
- Operating system: Linux
The kit includes:
The product includes the System-on-Module VAR-SOM-MX6 in a stock version: VAR-SOM-MX6Q_V2_1000C_1024R_512N_8G_AC_EC_TP_WB_LB_CT. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
