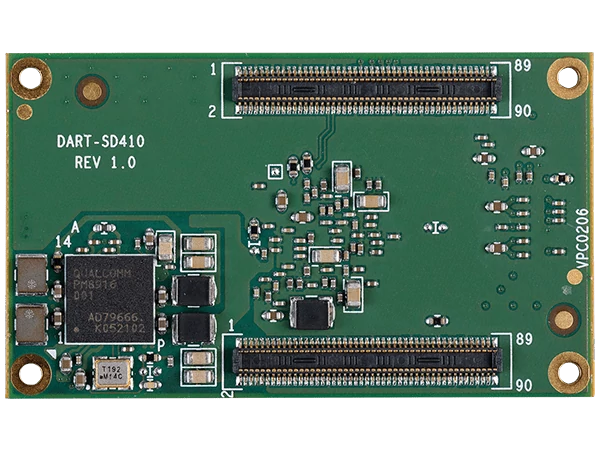

Variscite DART-SD410 Qualcomm Snapdragon 410 - SoM
ProcessorQualcomm Snapdragon 410 (APQ8016)
RAM memory2 GB
eMMC memory16 GB
Product length in millimeters43
Product width in millimeters22
Evaluation boards displayNo
Longevityuntil 2025Details
Parametry
Find similar products
Brand
Symbol
DART-SD410 Qualcomm Snapdragon 410
Technology
WiFi 4
BT 4.0
GNSS
Processor
Qualcomm Snapdragon 410 (APQ8016)
CPU clocking (max)
1.2 GHz
Number of cores
4
RAM memory
2 GB
eMMC memory
16 GB
Product length in millimeters
43
Product width in millimeters
22
Product height in millimetres
4
Evaluation boards display
No
Temperature range
-25...+85°C
Voltage
3.7 - 4.5V
Longevity
until 2025
Constellations
GPS
GLONASS
BeiDou
Galileo
Variscite DART-SD410 Qualcomm Snapdragon 410
Variscite DART-SD410 on-module system is based on a Qualcomm Snapdragon 410 (APQ8016) quad-core, 1.2 GHz Cortex-A53™ processor. The DART-SD410 offers an ideal combination of performance and low power requirements. The module requires a power supply in the range of 3.7 to 4.5 V. The DART-SD410's compact 25x43 mm size, energy efficiency and performance make it ideal for portable, battery-powered applications. The device is highly integrated in terms of connectivity, with interfaces : Wi-Fi/BT, GPS, USB and A/V. The product can operate in temperatures of -25...+85 degrees Celsius.
