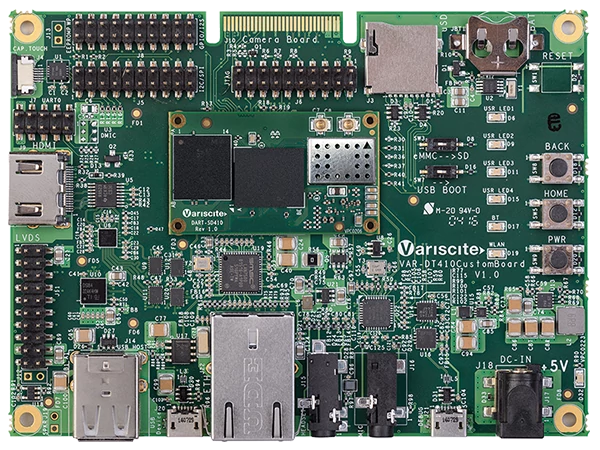

Variscite DART-SD410 Evaluation Kit w/ Linux

The SoM DART-SD410 is powered by a 1.2GHz Cortex-A53 processor. The dimensions of the computer are 25x43mm. The DART-SD410 highly supports Wi-Fi/BT, GPS, USB and A/V interfaces. The DART-SD410 is a high-performance system-on-module. It is an ideal building block that easily integrates into a wide range of target markets requiring rich multimedia functionality, powerful graphics and video capabilities, as well as high processing power. Compact, cost-effective and with low power consumption, the DART-SD410 is the ideal choice for high-end products.

SoM's key features:

• WiFi 4 / BT 4.1 / Ethernet Cat5e / GNSS
• Operational temperature range: -20...+85°C
• SoM size: 43 x 25 mm
• CPU Clocking: 1.2 GHz
• Memory: 1 GB RAM / 8 GB eMMC

The kit includes:

• SOM & Carrier board
• Debug Cable
• Antenna
• Boot/Rescue SD Card
• Display & Touch Panel
• Ethernet Cable
• 5V Power Supply
• Carrier Board Design Package
• Operating system: Linux.

The product includes the System-on-Module DART-SD410 in a stock version. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
