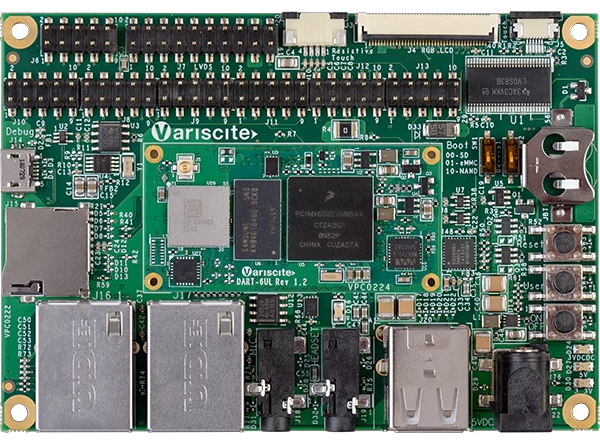

Variscite DART-6UL Evaluation Kit

Measuring only 50mm x 25mm, the DART-6UL is a highly flexible System on Module (SoM) / Computer on Module (CoM) based on NXP/Freescale’s i.MX 6UltraLite or i.MX 6ULL ARM Cortex-A7™ processor, up to 900MHz CPU Clock. The DART-6UL provides a variety of interfaces and connectivity options – all packaged at an optimized power, size and cost. The DART-6UL highly integrated connectivity includes a certified dual-band Wi-Fi 802.11 ac/a/b/g/n, Bluetooth/BLE, dual Ethernet, dual USB, audio, camera in, display with touch panel and serial interfaces.

SoM's key features:

• WiFi 5 / BT 5.2 / Ethernet Cat5 Dual
• Operational temperature range: 0...+70°C
• SoM size: 50 x 25 mm
• CPU Clocking: 900 MHz
• Memory: 512 MB RAM / 8 GB eMMC

The kit includes:

• SOM & Carrier board
• Debug Cable
• Antenna
• Boot/Rescue SD Card
• Display & Touch Panel
• Ethernet Cable
• 5V Power Supply
• Carrier Board Design Package
• Operating system: Linux

The product includes the System-on-Module DART-6UL in a stock version. To order a SoM according to your own configuration, please contact us (applies to orders of more than 100 units).
