Tibbo TPP2 (Gen. 2)

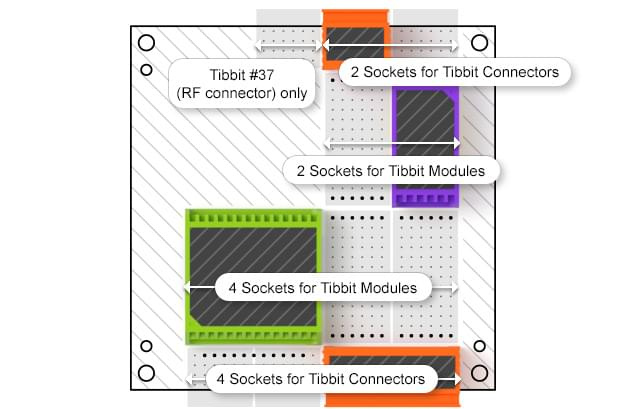

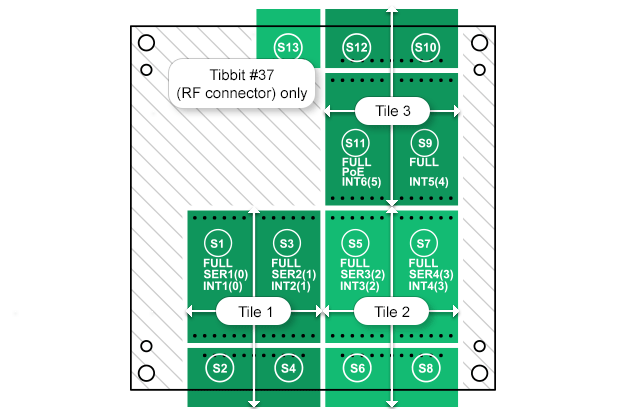

Size 2 Tibbo Project PCB, Gen 2 is a Tibbo BASIC/C-programmable board belonging to the Tibbo Project System (TPS) line. The board offers substantial speed and functionality improvements over its predecessor — the original TPP2 board. Offering 3 tiles for a total of 6 Tibbit module and 6 Tibbit connector sockets, the TPP2(G2) can be used to create TPS configurations with up to four serial ports, up to 12 relays, or up to 24 control lines, such as opto-inputs, PWMs, or open-collector outputs.

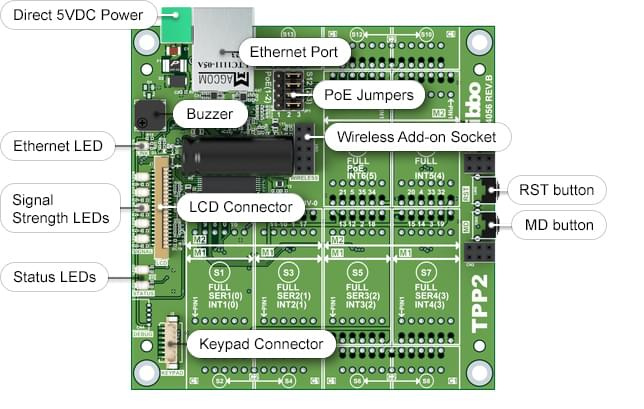

This product can be used as a bare board or assembled into a size 2 Tibbo Project Box (TPB2). The board is also compatible with and can be assembled into the TPB2L, which features a 320x240 TFT LCD and a 4-button sensor keypad. The TPP2(G2) is perfect for systems with a medium number of I/O lines. Since the board can control a TFT display and a keypad, it is suitable for applications requiring a human-machine interface (HMI). The board is an ideal choice for automatic identification and data collection (AIDC) systems, as well as factory, shop, data center, hotel and home safety, security, and automation applications. The TPP2(G2) board is supported by AppBlocks, a flowchart-based, no-code, in-browser application development platform.
