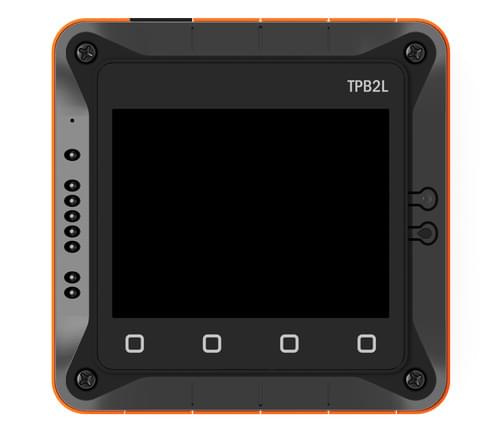

Size 2 Tibbo Project Box with LCD and Keypad

Fully assembled TPB2L, in retail packaging. Includes remover tongs. TPB2L fits one Size 2 Tibbo Project PCB (TPP2), Gen. 2 or one original Size 2 Tibbo Project PCB (TPP2). It accommodates up to six Tibbit modules and six Tibbit connectors. The TPB2L is like TPB2, except that its front is occupied by a 320x240 TFT LCD and a 4-key sensor keypad. The TPB2L kit includes top and bottom covers, left and right walls, status LED light guide, LCD, keypad, screws, and several other small parts. Two sides are formed by rows of connector Tibbits.

When housed in a TPB equipped with the available vibration protection kit, TPS devices meet the shock and vibration resistance requirements of the IEC 60068-2-27 standard.

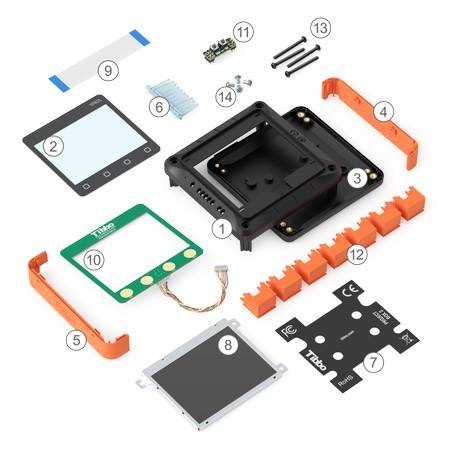

The list of TPB2L parts:

• 1. Top cover
• 2. Faceplate (LCD window)
• 3. Bottom Cover
• 4. Right wall
• 5. Left wall
• 6. LED light guide
• 7. Back label
• 8. 320x240 TFT LCD
• 9. LCD cable
• 10. Sensor keypad PCB and cable
• 11. MD/RST button PCB
• 12. Seven blank Tibbit connector shells (PM12P1001-03)
• 13. Four main screws (2.5mm hex socket, 3.5mm x 32mm thread)
• 14. Four PCB screws
