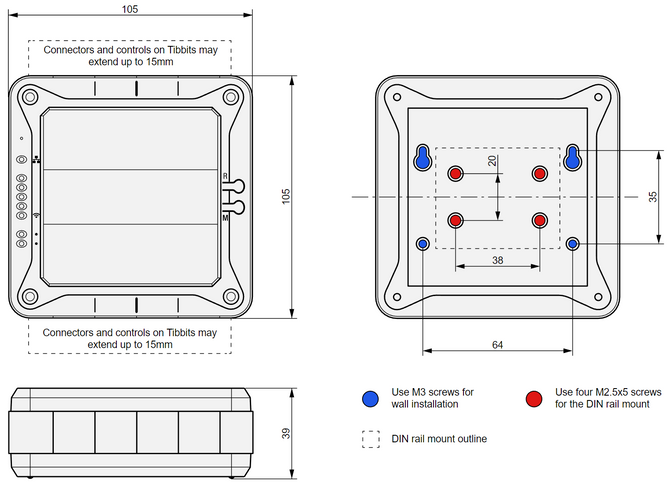

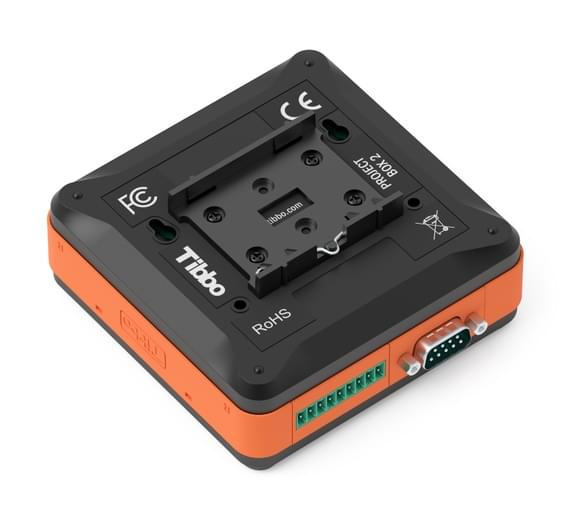

Size 2 Tibbo Project Box + DMK1000 DIN rail kit + TPB2-VPK vibration protection kit

Fully assembled TPB2 + DMK1000 DIN rail kit + TPB2-VPK vibration protection kit, in retail packaging. Includes remover tongs. TPB2 fits one Size 2 Tibbo Project PCB (TPP2), Gen. 2 or one original Size 2 Tibbo Project PCB (TPP2). It accommodates up to six Tibbit modules and six Tibbit connectors. The TPB2 kit includes top and bottom covers, left and right walls, status LED light guide, screws, and paper inserts with transparent covers for marking wires and cables. Two sides are formed by rows of connector Tibbits.

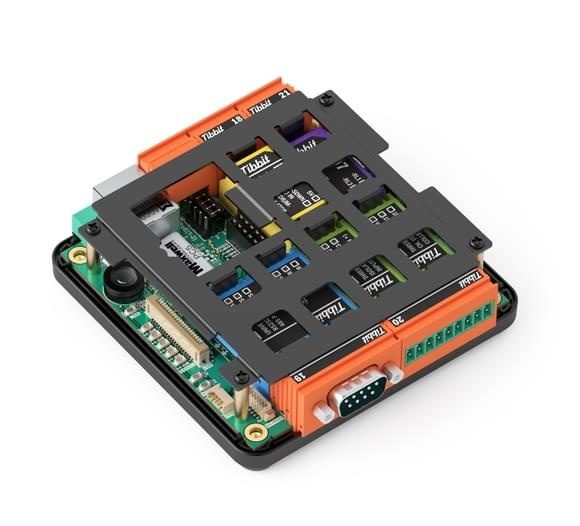

When housed in a TPB equipped with the available vibration protection kit, TPS devices meet the shock and vibration resistance requirements of the IEC 60068-2-27 standard.

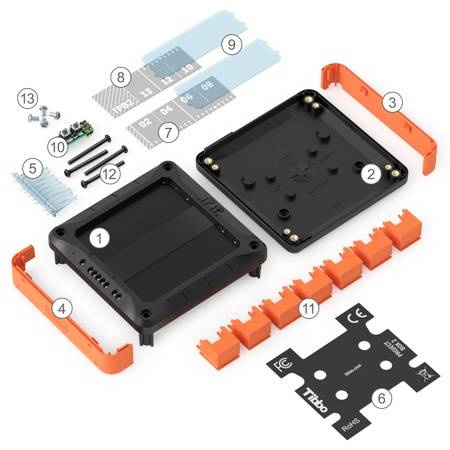

The list of TPB2 parts:

• 1. Top cover
• 2. Bottom cover
• 3. Right wall
• 4. Left wall
• 5. LED light guide
• 6. Back label
• 7. Paper insert, bottom row
• 8. Paper insert, top row
• 9. Two paper insert covers
• 10. MD/RST button PCB
• 11. Seven blank Tibbit connector shells (PM12P1001-03)
• 12. Four main screws (2.5mm hex socket, 3.5mm x 32mm thread)
• 13. Four PCB screws
