Tibbo Tibbit Block #12

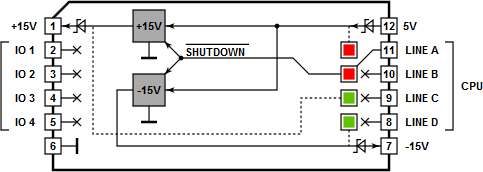

Tibbit Block #12 is a low-power non-isolated power supply with +15/-15V output, 5V input, shutdown control. It is capable of generating up to 15mA of +15V power and 15mA of -15V power from the main 5V supply rail. The module's form factor is M1S, 7x14 squares (2.54 x 2.54 mm each).

Mates with Tibbits: #19, #20, #31, #37
