Tibbo Tibbit Block #09

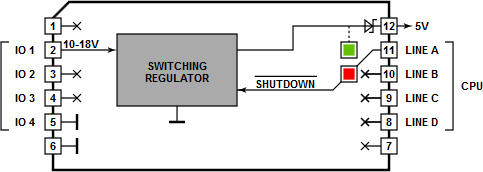

Tibbit Block #09 is a low-power non-isolated power supply with 5V output, 9-18V input range, shutdown control. It is capable of generating up to 700mA of 5V power from the external input in the 9-18V range. The module's form factor is M1S, 7x14 squares (2.54 x 2.54 mm each).

Mates with Tibbits: #18, #19, #20, #21
