Tibbo Tibbit Block #04-7 - input module
Tibbo Tibbit Block #04-7 - input module
Tibbo Tibbit Block #04-7 - input module
Tibbo Tibbit Block #04-7 - input module

Tibbo Tibbit Block #04-7 - input module

Form factorM1S
Size
uniwersalny
excl. VAT
49,83 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - #04-7
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
Tibbo
Symbol
Tibbit #04-7
Producer code
5900000756431
Form factorForm factor
M1S
Size (in "squares")
7x14
Product length in millimetersProduct length in millimeters
35,3
Product height in millimetresProduct height in millimetres
12.5
Number of pinsNumber of pins
12
VoltageVoltage
5V
Electric current
35mA
ColourColour
Green
Search

Tibbo Tibbit Block #04-7

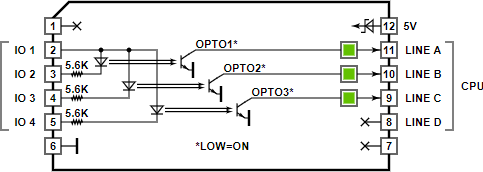

Tibbit Block #04-7 has three optically isolated inputs with common (+). Inputs are fully isolated from system ground. The module's form factor is M1S, 7x14 squares (2.54 x 2.54 mm each).

Mates with Tibbits: #19, #20, #21
