RAKwireless WisGate Connect Industrial
The WisGate Connect Industrial provides a set of connectivity options specially designed for Industrial Internet of Things (IIoT). This includes wireless protocols like LoRa and Zigbee, two Ethernet interfaces for MQTT, ModBUS TCP, BACnet IP, and two WisBlock slots compatible with ModBUS RTU, 4-20mA, Analog IN, Digital IN/OUT, relays, sensors.

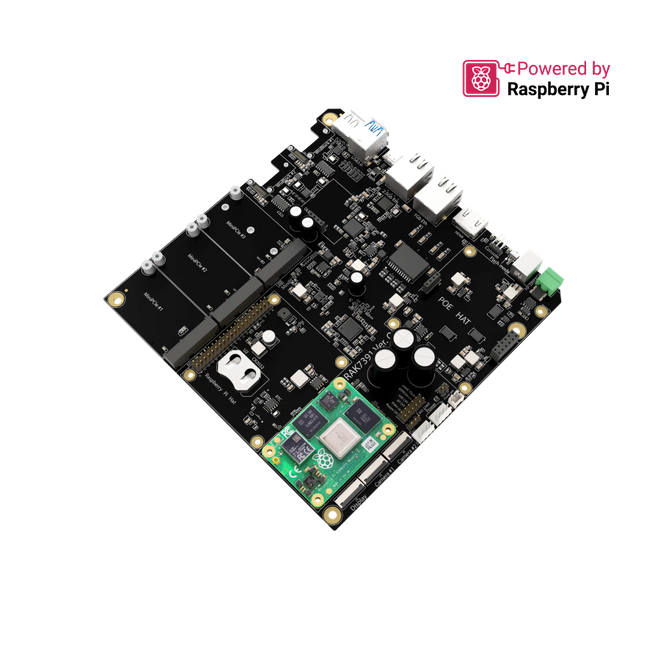

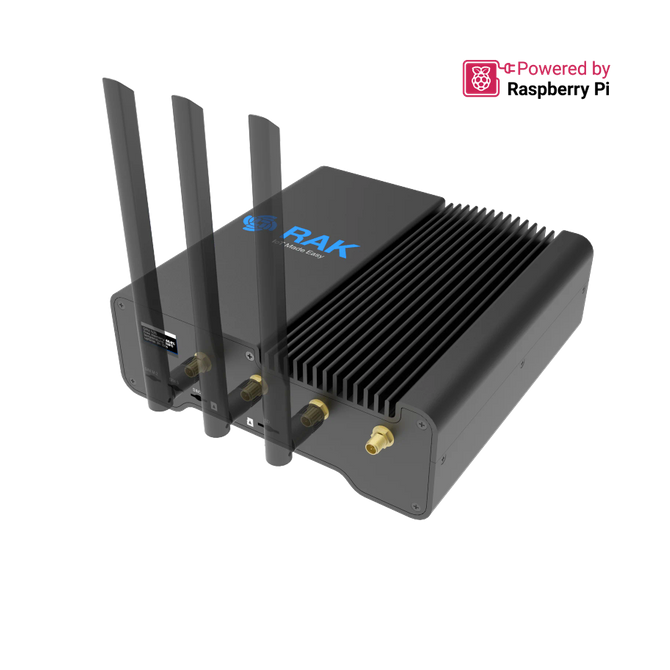

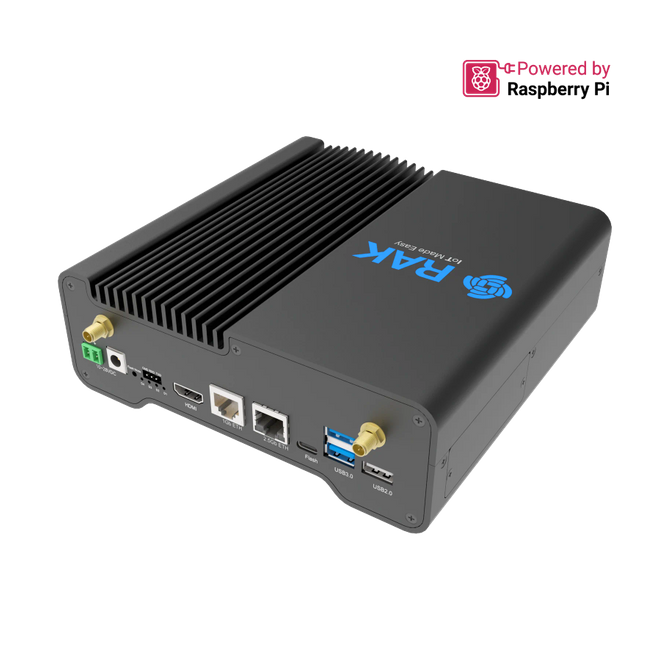

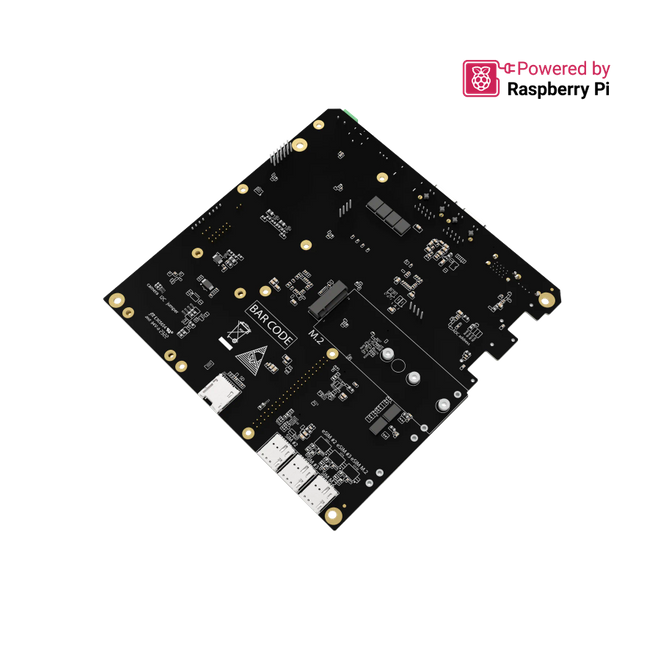

At the core of the WisGate Connect we have a RAK7391 carrier board for the the Raspberry Pi Compute Module 4 (CM4). This is a powerful ARM hardware solution capable of running different operating systems and multiple applications. The ruggedized enclosure is 1U size in height and can be rack-mounted with the proper adapters. It also proves free access to the back connectors: HDMI, 1GB Ethernet (with optional PoE support), 2.5GB Ethernet, USB2, USB3 and serial console access.
It has flexible power supply modes such as DC terminal, Phoenix terminal with 9 to 28VDC and also PoE+ (optional). The RAK7391 provides a fan interface to dissipate heat for the CPU that you can control based on the CPU temperature. It can monitor the power supply. In the event of a power failure, the ultra-capacitors can provide power to the system, so that the system can send a notification or easily survive micro-cuts in the power supply.
- 2GB RAM + 16GB eMMC + WiFi
- 4GB RAM + 32GB eMMC + WiFi

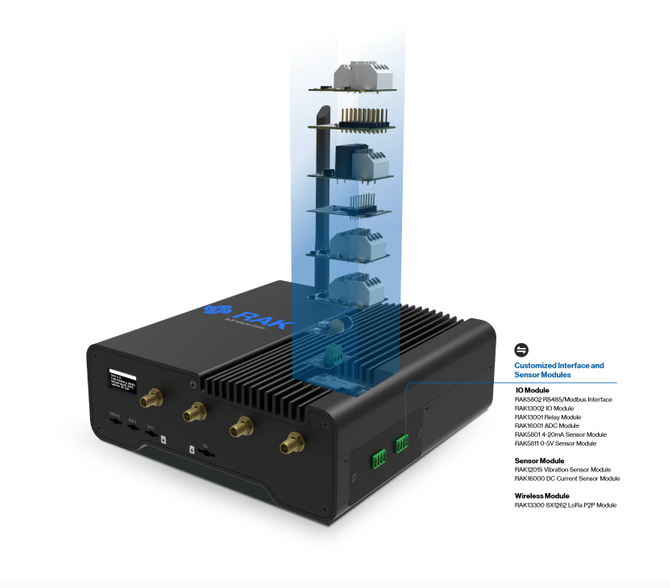

- RAK5802 RS485/Modbus Interface
- RAK13002 IO Module
- RAK12015 Vibration Sensor Module
- RAK5801 4-20mA Sensor Module
- RAK13300 SX1262 LoRa P2P Module
- No Module
- RAK16000 DC Current Sensor Module
- RAK13001 Relay Module
- RAK5811 0-5V Sensor Module
- RAK16001 ADC Module
- No Module
This product is available on demand, in multiple variations and combinations with:
2 variants of Compute Module 4
6 variants of WisBlock Slot #1 modules
5 variants of WisBlock Slot #2 modules
- RAK7391 CM4 carrier board
- Set of jumpers
- Phoenix male connector
- 12V2A power supply
- Set of standoffs and screws to secure the board
- Set of screws for the mPCIe, M.2 and WisBlock slots
- Aluminum enclosure with OLED screen
- Set of screws for the enclosure
- Set of rubber feet
- Set of SMA caps
The kit includes
