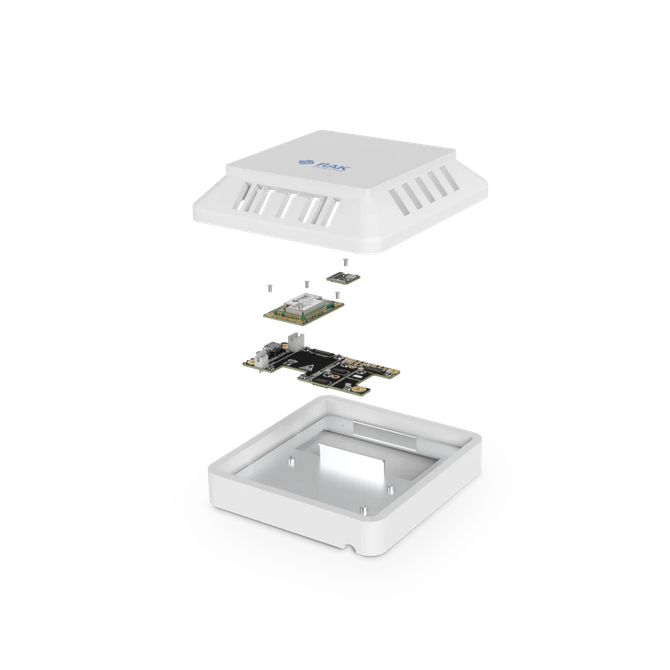

RAKwireless WisBlock Kit 4-EU868

WisBlock Kit 4 Measures the air quality index, temperature, humidity, and barometric air pressure with the BOSCH BME680 environment sensor. Acquired data is sent frequently to a LoRaWan® server.

Key features:

RAK19007

• Easy Plug'n'Play slots for WisBlock Core MCU, WisBlock Sensor, and other WisBlock modules
• Small form factor
• Supports 3 different power supply sources
• Optimized for low power consumption applications
• I2C, UART, GPIO's an analog input accessible with solder contacts
• 2 user-definable LED's
• Reset button
• USB debug port
• 1 slot for WisBlock Core MCU
• 4 slots for WisBlock Sensor sensor modules
• 1 slot for another WisBlock extension modules

RAK4631

• LoRaWan® 1.0.2 protocol stack (supports Class A & C)
• Bluetooth Low Energy 5.0 protocol stack
• Nordic nRF52840
• Wide range of connections
• Semtech SX1262

RAK1906

• Using the Bosch BME680 environment sensor
• Low power consumption
• Small form factor
• Temperature range: -40°C to +85°C
• Humidity range: 0% to 100%
• Pressure range: 300 to1100 hPa
• Gas sensor response time < 1s
• Gas sensor direct output of IAQ: Index for Air Quality



Package Inclusion:

• RAK19007
• RAK4631
• RAK1906
• RAKBox-B3
• LoRa Antenna
• BLE Antenna
