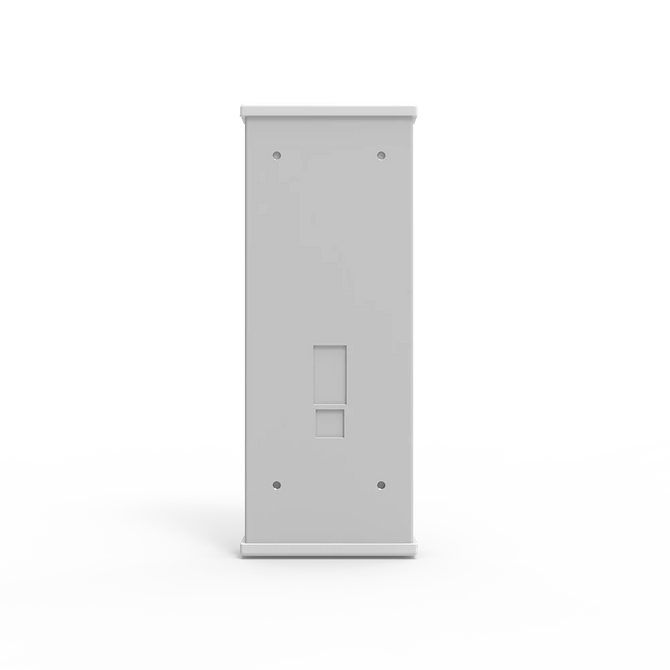

RAKwireless RAKARP01 12dBi Antenna - LoRa antenna
RAKwireless RAKARP01 12dBi Antenna - LoRa antenna
RAKwireless RAKARP01 12dBi Antenna - LoRa antenna
RAKwireless RAKARP01 12dBi Antenna - LoRa antenna
RAKwireless RAKARP01 12dBi Antenna - LoRa antenna
RAKwireless RAKARP01 12dBi Antenna - LoRa antenna

RAKwireless RAKARP01 12dBi Antenna - LoRa antenna

Antenna connector typeN-type male
MountingPole
TechnologyLoRa
PositioningExternal
Frequency860 - 930 MHz
Size
uniwersalny
excl. VAT
201,08 €
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - 12dBi 860-930 antenna
Ask us about the product
Ask about the product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
RAKwireless
Symbol
SKU: 925026
Antenna connector typeAntenna connector type
N-type male
MountingMounting
Pole
TechnologyTechnology
LoRa
PositioningPositioning
External
Product height in millimetresProduct height in millimetres
750
Product length in millimetersProduct length in millimeters
280
Product width in millimetersProduct width in millimeters
125
Ingress ProtectionIngress Protection
IP67
Temperature rangeTemperature range
-40...+55°C
Frequency
860 - 930 MHz
Radiation pattern
Directional
Polarisation
Vertical
Max. gain
12 dBi
Max. VSWR
1,5
Impedance
50 Ohm
Search

RAKwireless RAKARP01 12dBi 870 MHz Antenna

RAKARP01 12dBi UPVC-made antenna dedicated for RAKwireless gateways. Greyish-white colour. For outdoor applications, IP67 degree of protection.


    Key features:

  • Frequency: 860 ~ 930 MHz
  • Gain: 12 dBi
  • VSWR: ≤1.5
  • Horizontal beam width: 65º (± 10º)
  • Vertical beam width: 35º (± 10º)
  • Impedance: 50 Ω
  • Polarization: Vertical
  • Type: Directional
  • Radome body: UPVC
  • Connector: N-type female

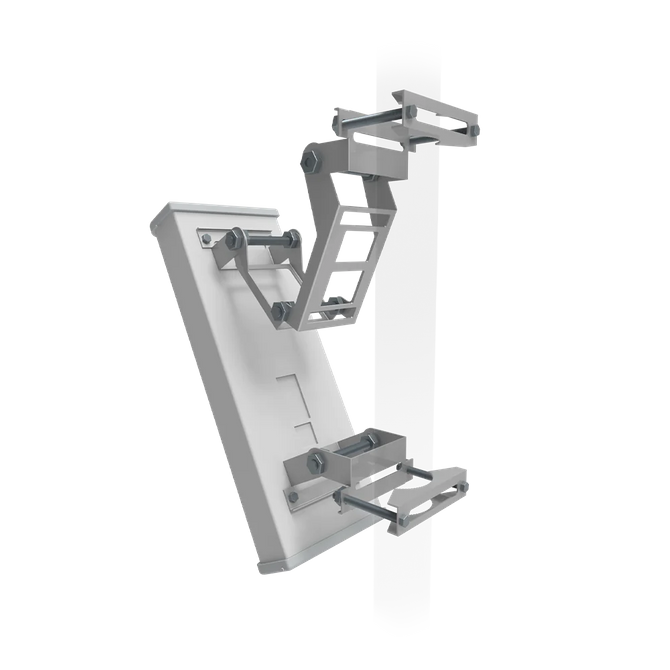

  • Bracket inclusion: 2 pcs brackets
  • Dimensions: 750×280×125 mm
  • Operating temperature: -40 ~ +55 ºC
  • Mounting pole diameter: ∅ 30 ~ 75 mm
