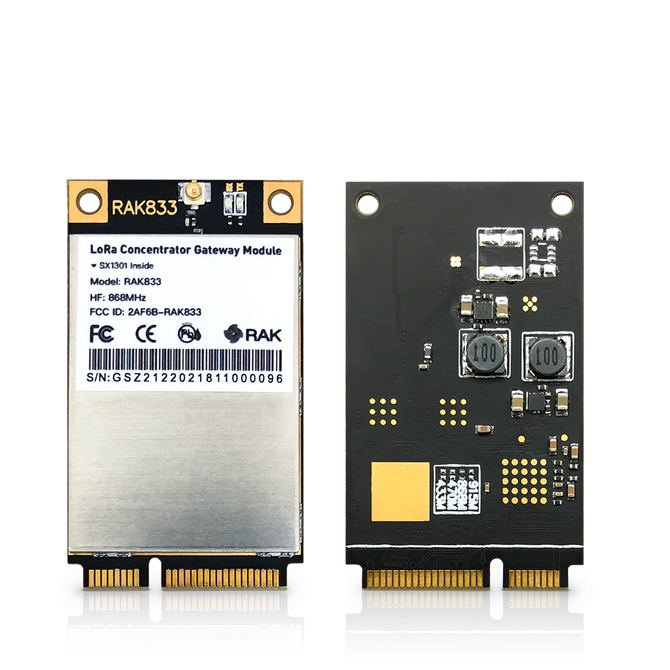

RAKwireless RAK833-EU868-SPI

RAK833 WisLink LPWAN Concentrator is a family of LoRa concentrator modules with a mini PCIe form factor based on SX1301, which enables easy integration into existing routers and other network equipment with gateway capabilities.

RAK833 WisLink LPWAN Concentrator is a complete and cost efficient gateway solution offering up to 10 programmable parallel demodulation paths. It is targeted at smart metering fixed networks and Internet of Things applications with up to 500 nodes per square kilometer (km²) in a moderately interfered environment. These modules have the industry standard PCI Express Mini Card form factor which enables easy integration into an application board.

Key features:

• Full LoRaWAN 1.0.2 stack support
• Compact size in the form of a mPCIe 52-pin form factor card
• SX1301 base band processor emulates 49 x LoRa demodulators, 10 parallel demodulation paths. It supports 8 uplinks channels and 1 downlink channel
• Max Tx Power of 20 dBm
• RX sensitivity of -136 dBm
• Compatible with 3.3 V mPCIe type slots, common for 3G/LTE modules
• SPI interface board

The kit includes:

• 1x RAK833-SPI
• 1x iPEX antenna
