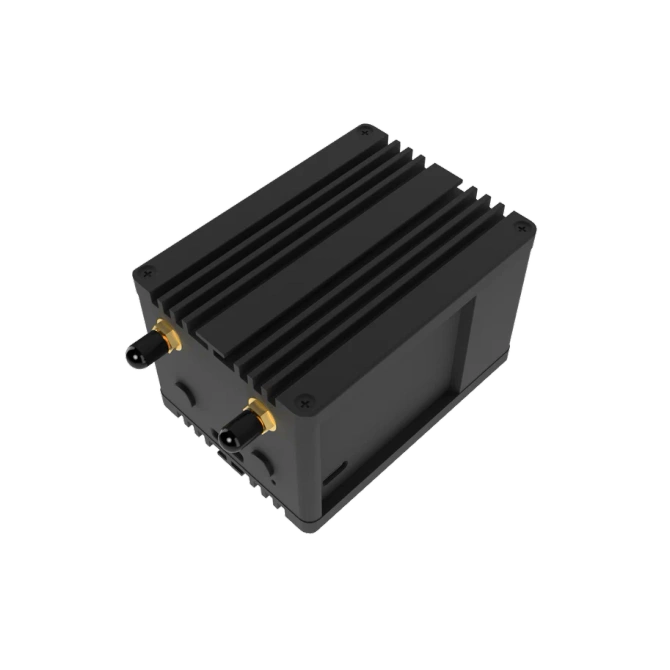

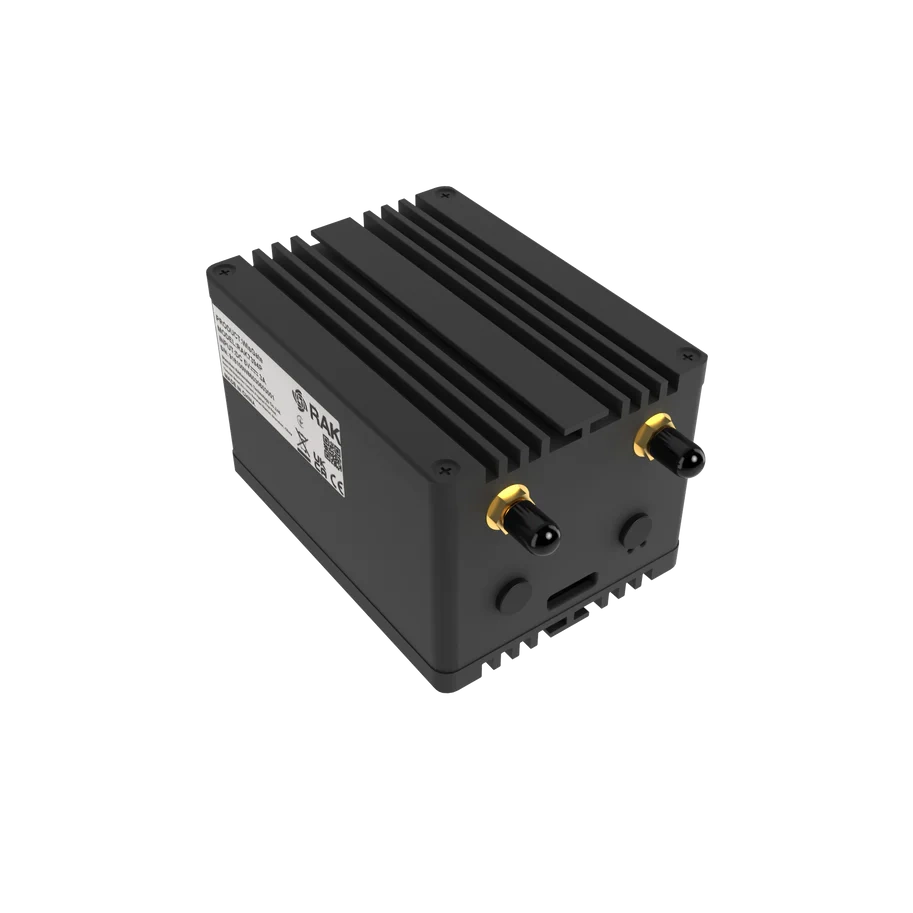

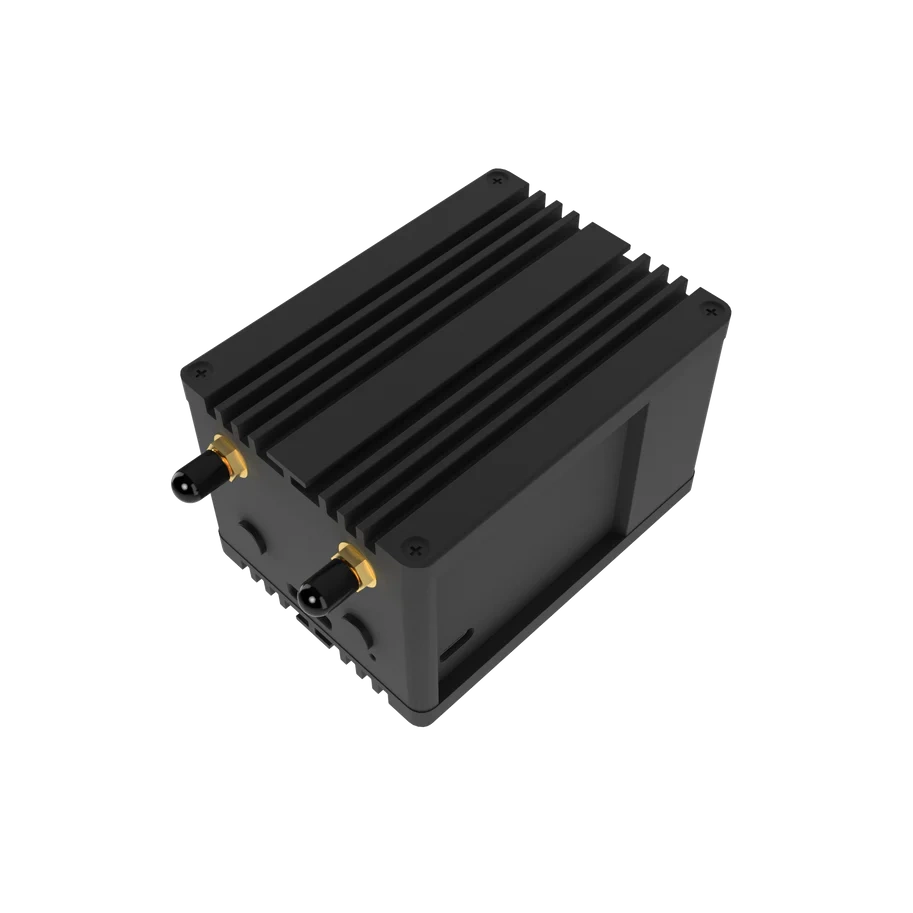

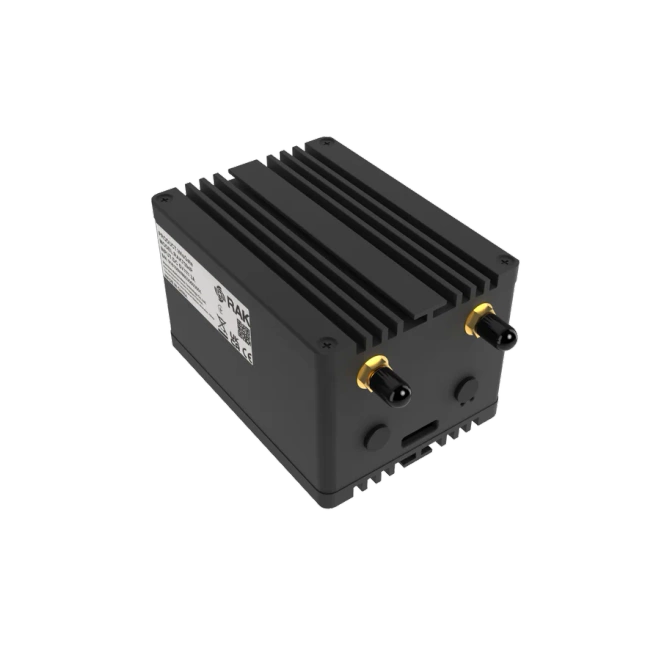

RAKwireless RAK7394P WisGate Developer CM4P - EU868 - 2+16 GB - PoE

RAK7394P LPWAN Developer Gateway from Rak Wireless. The device includes a built-in Raspberry Pi 4 computer, RAK2287 concentrator, RAK2287 Pi HAT, RAK9003 Pi HAT and RAKR314 carrier board. The enclosure is made entirely of aluminum.

The RAKR314 Carrier Board is specifically designed for the Raspberry Compute Module CM4, following the Raspberry Pi 4 form factor. With a standard 40 PIN GPIO and support for the RAK PoE HAT, this board is perfect for power-over-Ethernet applications.

TThe RAK2287, equipped with the SX1302 chip from Semtech, features a powerful digital signal processing engine and a built-in LoRa® concentrator IP core. It can receive up to 8 LoRa packets with different spreading factors on different channels, making it ideal for implementing innovative network architectures. This gateway offers a wide range of applications, such as smart energy networks, smart agriculture, and other IoT applications in enterprises.

Features:

• RAKR314 Carrier board for Raspberry CM4
• Powered by Compute Module 4 from Raspberry Pi
• Preassembled, fully functioning LPWAN developer gateway
• Supports 8 channels
• Band support: 865MHz, 868MHz, 915MHz, 920MHz, 923MHz (depends on the selected model)
• TX power up to 27dBm, RX sensitivity: -139dBm

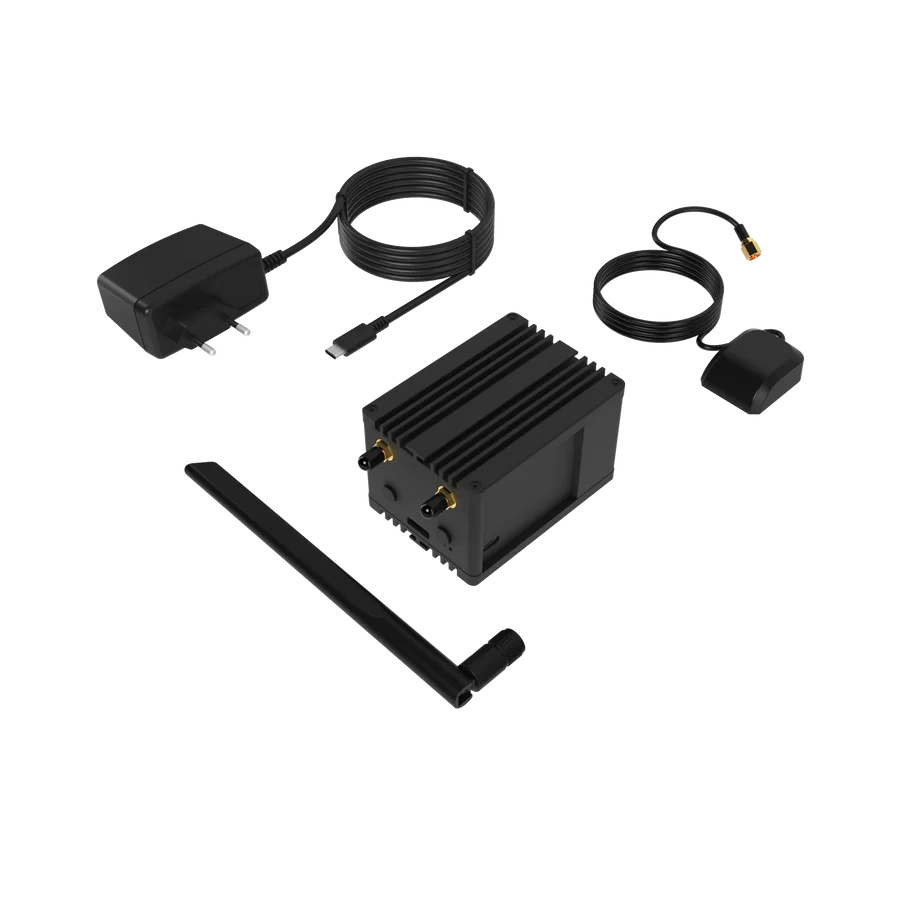

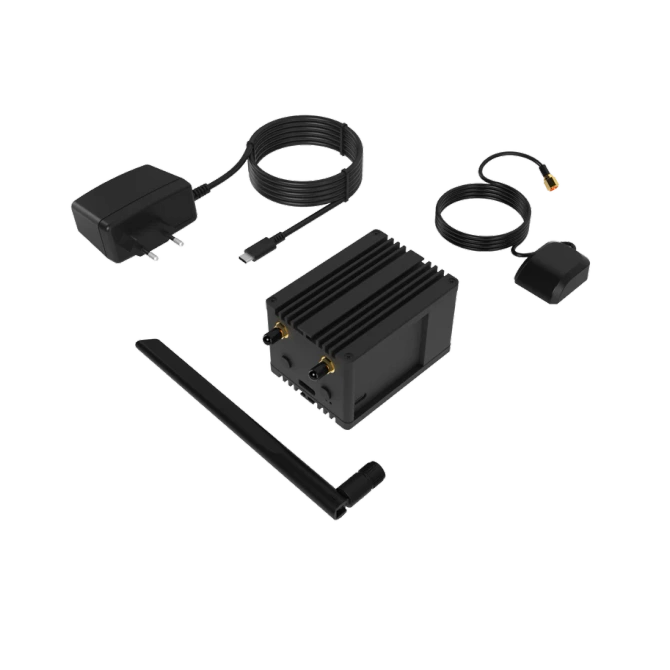

The kit includes:

• 1x RAK7394P LPWAN Developer Gateway
• 1x LPWAN Antenna
• 1x GPS antenna
• 1x Power adaptor
