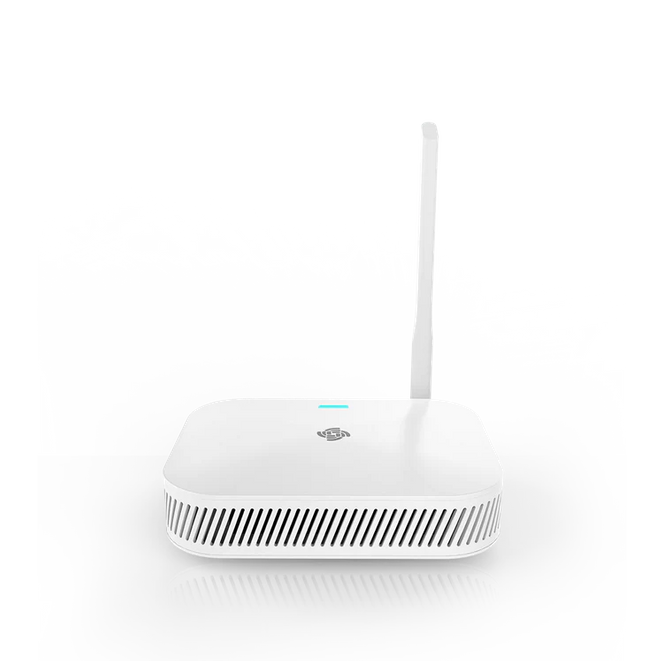

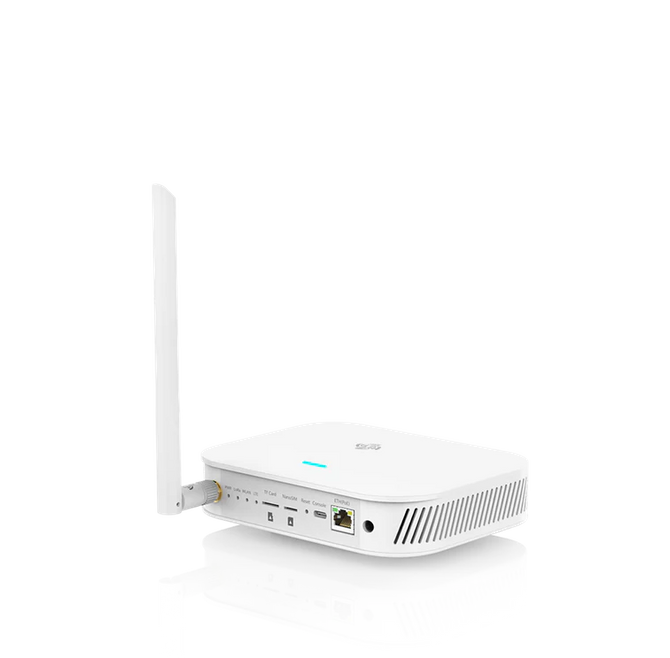

RAKwireless RAK7268V2 - EU868 - 8 Channels - Non-LTE

RAK7268V2 WisGate Edge Lite 2 is the latest edition of the RAK Edge Series with onboard Wi-Fi setup (supporting 2.4 GHz Wi-Fi) that allows it to be easily configured via the default Wi-Fi AP mode. The new RAK7268V2 supports power-over-Ethernet (PoE) in cases of a wall or ceiling mounting, where installing additional power lines is not an option. Commercial class product.

This gateway operates on WisGateOS 2 , a powerful platform that ensures enhanced security, robust functionality, and flexibility for customizations via extensions. Furthermore, the RAK7268V2 integrates seamlessly with WisDM, enabling fleet management and remote monitoring of multiple devices, making it an ideal choice for managing large networks of gateways

Key features:

• 2.4GHz Wi-Fi AP support
• 100M Base-T Ethernet with PoE
• RP-SMA LoRa antenna connector
• Wi-Fi, Ethernet backhaul
• SD card
• DC 12V
• WisGate OS 2
• Full LoRaWAN Stack (V 1.0.3) support with Semtech SX1302
• OpenWRT
• LoRa packet filtering
• MQTT v3.1 Bridging with TLS encryption
• Packet Forwarder mode

The kit includes:

• Gateway
• LoRa antenna
• POE Injector
• Mounting frame
• Power supply

The products operating temperature range is -10...55˚C.
