RAKwireless RAK7268C - EU868 - LTE (EG95-E) - gateway
RAKwireless RAK7268C - EU868 - LTE (EG95-E) - gateway
RAKwireless RAK7268C - EU868 - LTE (EG95-E) - gateway
RAKwireless RAK7268C - EU868 - LTE (EG95-E) - gateway

RAKwireless RAK7268C - EU868 - LTE (EG95-E) - gateway

TechnologyLoRaWAN 1.0.3WiFi 4Ethernet Cat5LTE
ChipSemtech SX1302MT7628
PositioningInternal
Channels8
FirmwareWisGateOS V1.0.2
Technology
Size
uniwersalny
excl. VAT
885,12 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - RAK7268
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
RAKwireless
Symbol
RAK7268C-EU868
Producer code
5900000762791
Series
WisGate
TechnologyTechnology
LoRaWAN 1.0.3
WiFi 4
Ethernet Cat5
LTE
ChipChip
Semtech SX1302
MT7628
PositioningPositioning
Internal
ChannelsChannels
8
Ingress ProtectionIngress Protection
IP30
FirmwareFirmware
WisGateOS V1.0.2
FLASH memoryFLASH memory
16 MB
RAM memoryRAM memory
128 MB
Product length in millimetersProduct length in millimeters
166
Product width in millimetersProduct width in millimeters
127
Product height in millimetresProduct height in millimetres
36
Antenna connector typeAntenna connector type
RP-SMA
Temperature rangeTemperature range
-10...+55°C
Search

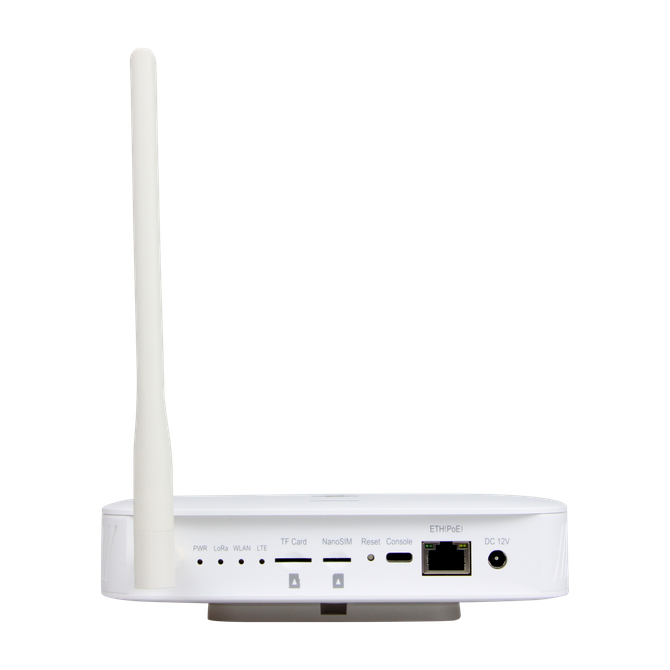

RAKwireless RAK7268C - EU868 - LTE (EG95-E)

RAK7268C WisGate Edge Lite 2 is a full 8-channel indoor gateway, based on the LoRaWAN protocol, with builtin Ethernet connectivity for a straightforward setup. There is an onboard Wi-Fi setup (supporting 2.4 GHz Wi-Fi) that allows it to be easily configured via the default Wi-Fi AP mode. Commercial class product.


Product not recommended for new designs. Use RAK7268V2/RAK7268CV2.


    Key features:

  • Full support for LoRaWAN™ Stack (version 1.0.3) with Semtech SX1302.
  • Support for 2.4GHz Wi-Fi access points.
  • 100M base-T Ethernet with PoE support
  • Multi back-haul capability via Ethernet, WiFi, or cellular connectivity.
  • OpenWRT software support with Web UI.
  • Connectivity to private (ChirpStack) and public (TTN) web servers.
  • Built-in web server for easy application deployment and hub integration.
  • TF card support for log backups.

The kit includes:

  • Gateway
  • LoRa antenna
  • Screws
  • Mounting frame
  • Power supply

The products operating temperature range is -10...55˚C.
