RAKwireless RAK7268 - EU868 - Non-LTE - gateway
Details
Parametry
Find similar products
Brand
Symbol
RAK7268-EU868
Producer code
5900000767864
Series
Technology
LoRaWAN 1.0.3
WiFi 4
Ethernet Cat5
Chip
Semtech SX1302
MT7628
Positioning
Internal
Channels
8
Ingress Protection
IP30
Firmware
WisGateOS V1.0.2
FLASH memory
16 MB
RAM memory
128 MB
Product length in millimeters
166
Product width in millimeters
127
Product height in millimetres
36
Antenna connector type
RP-SMA
Temperature range
-10...+55°C

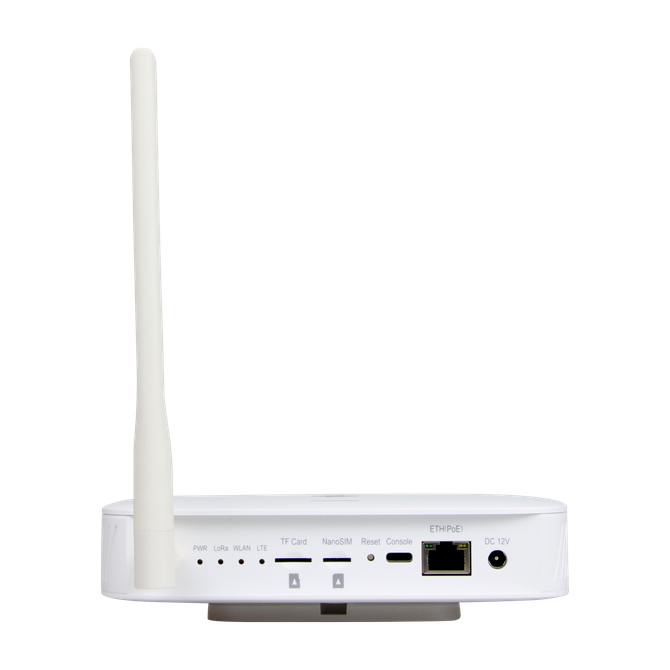

RAKwireless RAK7268 - EU868 - Non-LTE
RAK7268 WisGate Edge Lite 2 is a full 8-channel indoor gateway, based on the LoRaWAN protocol, with builtin Ethernet connectivity for a straightforward setup. There is an onboard Wi-Fi setup (supporting 2.4 GHz Wi-Fi) that allows it to be easily configured via the default Wi-Fi AP mode. Commercial class product.
Product not recommended for new designs. Use RAK7268V2/RAK7268CV2.
- Full support for LoRaWAN™ Stack (version 1.0.3) with Semtech SX1302.
- Support for 2.4GHz Wi-Fi access points.
- 100M base-T Ethernet with PoE support
- Multi back-haul capability via Ethernet or WiFi.
- OpenWRT software support with Web UI.
- Connectivity to private (ChirpStack) and public (TTN) web servers.
- Built-in web server for easy application deployment and hub integration.
- TF card support for log backups.
Key features:
The kit includes:
- Gateway
- LoRa antenna
- Screws
- Mounting frame
- Power supply
The products operating temperature range is -10...55˚C.
