RAKwireless RAK7248 WisGate Developer D4H - EU868 - 2GB - NonLTE

RAK7248 WisGate Developer D4H is a LoRaWAN Gateway that consists of Raspberry Pi4, RAK2287 Concentrator, and RAK2287 Pi HAT. For the build-in RAK2287, it uses the SX1302 chip from Semtech which built-in LoRa concentrator IP core is a powerful digital signal processing engine. It can receive up to 8 LoRa packets with different spreading factors on different channels and is available in multiple variants so it can be used for international standard bands. This unique capability allows implementing innovative network architectures advantageous over other short-range systems. RAK2287 Pi HAT is a converter board a with Raspberry Pi form factor that enables the RAK2287 module to be mounted on top of the Raspberry Pi. It integrates one (1) 40-pin female Pi HAT connector and one mPCIe connector to connect RAK2287 (RAK9003 in PoE variant/RAK2013 in Cellular variant) to the Raspberry Pi 4.

RAK7248 is ideal for prototyping, proof-of-concept demonstrations, or evaluation. It includes a ready-to-use LoRaWAN Gateway OS that can be connected to a LoRaWAN server. Also, it is developer-friendly and simple even for not-so-tech users to set up a LoRaWAN system. It has to be the best value and function for connectivity to address a variety of applications like Smart Grid, Intelligent Farm, and other IoT enterprise applications.

Features:

• Computing with Raspberry Pi4 (Linux)
• Based on the LoRa Concentrator Engine: Semtech® SX1302
• Built-in Ublox ZOE-M8Q GPS Module
• Built-in Heat Sink for thermal heat dissipation management
• Supports 5V/3A and Power-Over-Ethernet (only in PoE variant) power supply
• IP30 housing
• TX power up to 27dBm, RX sensitivity down to -139 dBm @SF12, BW 125 KHz
• LoRa Frequency band support: EU868
• Includes Pi-ready 'ID EEPROM', GPIO setup, and device tree can be automatically configured from vendor information
• Supports a fully open source LoRaWAN server

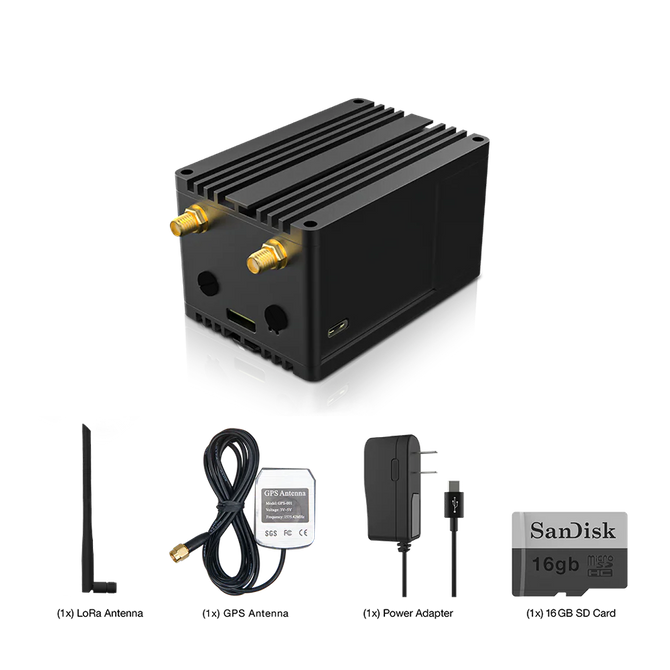

The kit includes:

• 1unit RAK7248 LPWAN Developer Gateway
• 1pc LPWAN Antenna
• 1pc GPS Antenna
• 1pc Power Adapter
• 1pc SD Card
