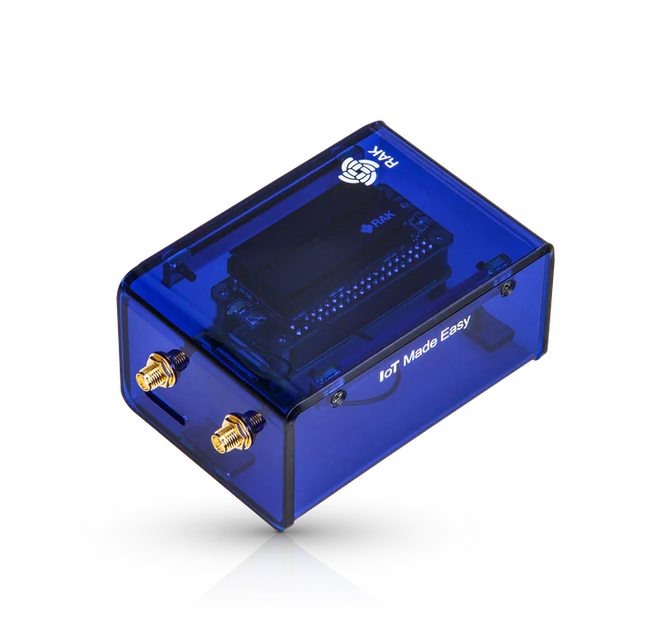

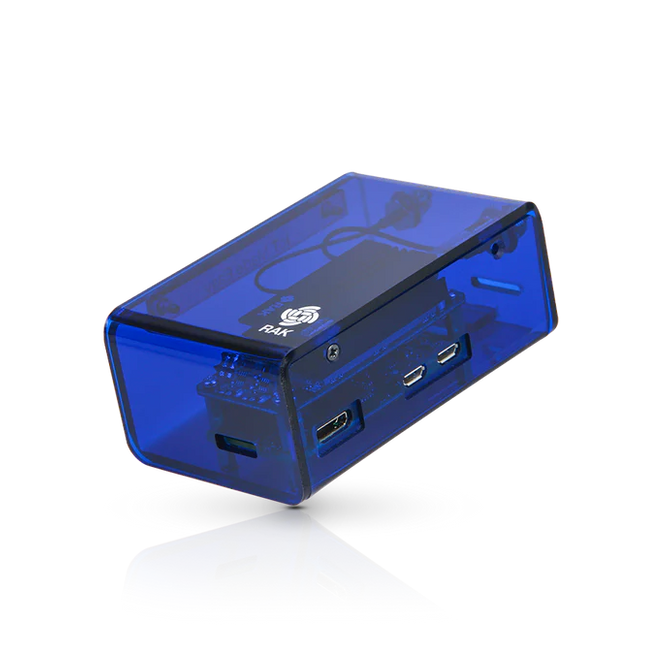

RAKwireless RAK7246G WisGate Developer D0+ - EU868 - gateway
RAKwireless RAK7246G WisGate Developer D0+ - EU868 - gateway
RAKwireless RAK7246G WisGate Developer D0+ - EU868 - gateway
RAKwireless RAK7246G WisGate Developer D0+ - EU868 - gateway
RAKwireless RAK7246G WisGate Developer D0+ - EU868 - gateway
RAKwireless RAK7246G WisGate Developer D0+ - EU868 - gateway

RAKwireless RAK7246G WisGate Developer D0+ - EU868 - gateway

TechnologyLoRaWANWiFi 4GNSS
ChipBCM2835Semtech SX1308Semtech SX1257Ublox MAX-7Q
PositioningInternal
Channels8
Ingress ProtectionIP30
FirmwareRaspberry
Technology
Size
uniwersalny
excl. VAT
Price on demandPrice on demand
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - RAK7246
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
RAKwireless
Symbol
SKU: 705029
Producer code
5900000759296
Series
WisGate
TechnologyTechnology
LoRaWAN
WiFi 4
GNSS
ChipChip
BCM2835
Semtech SX1308
Semtech SX1257
Ublox MAX-7Q
PositioningPositioning
Internal
ChannelsChannels
8
Ingress ProtectionIngress Protection
IP30
FirmwareFirmware
Raspberry
Product length in millimetersProduct length in millimeters
96
Product width in millimetersProduct width in millimeters
66
Product height in millimetresProduct height in millimetres
47
Number of pinsNumber of pins
40
Antenna connector typeAntenna connector type
IPEX
Temperature rangeTemperature range
-10...+65°C
VoltageVoltage
5V
Search

RAKwireless RAK7246G WisGate Developer D0+ - EU868

The RAK7246G hub is based on the Raspberry Pi Zero W computer and the RAK2246 Pi HAT LPWAN hub module. This product contains an SX1308 chip that allows eight LoRa channels to be operated in parallel. The RAK7246G hub is a proposal for prototypes, demonstration or development products. Also supports GPS navigation.

    Module features:

  • It is based on the SX1308 chip, which supports 8 uplink and 1 downlink channels for LoRaWAN connectivity
  • GPS
  • Integrated heat sink
  • Maximum signal strength 20dbm
  • Rx receiver sensitivity min -139dbm @ SF12 at 125kHz
  • Power supply 5V / 2.5A

    The kit includes:

  • RAK7246 LPWAN Developer Gateway Hub with built-in RAK2246 and Raspberry Pi Zero W.
  • 1x LoRa antenna
  • 1x GPS antenna
  • 16GB TF memory card with pre-installed firmware
  • USB cable
