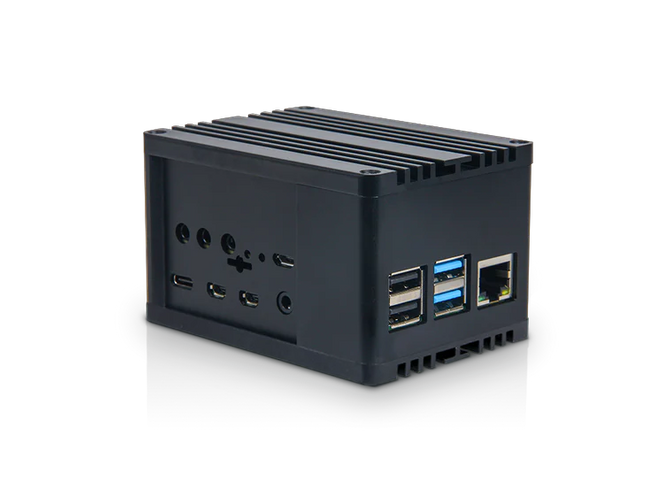

RAKwireless RAK7244C WisGate Developer D4+ - EU868 - 4GB - LTE

RAK7244C WisGate Developer D4+ Gateway is a device that consists of Raspberry Pi 4, RAK2245 Pi HAT which includes a GPS module and a Heat Sink for better performance and thermal heat dissipation management, and a RAK2013 Cellular Pi HAT and its housing is built with an aluminum casing.

For the built-in RAK2245 Pi HAT, the SX1301 chip from Semtech is used, which is a built-in LPWAN concentrator IP core, a powerful digital signal processing engine. It can receive up to 8 LoRa packets simultaneously sent with different spreading factors on different channels and is available in multiple options so it can be used for international standard bands. This unique capability allows for the implementation of innovative network architectures advantageous over other short-range systems. For the build-in RAK2013 Cellular Pi HAT, it supports optional QUECTEL BG96 / EG91 / EG95 which can support NB-IoT / CAT-M / CAT1 LTE / CAT4 LTE. It follows Raspberry Pi specifications and is easy to mount with Raspberry Pi and RAK2245 Pi HAT module.

Module features:

• Preassembled, fully functioning gateway
• SX1301 baseband processor, emulates 49 x LoRa demodulators 10 programmable parallel demodulation paths, supports 8 uplinks channels and 1 downlink channel
• Built-in Ublox MAX-7Q GPS Module
• Built-in heat sink for thermal heat dissipation management
• Supports 5 V / 2.5 A power supply
• TX power up to 27 dBm, RX sensitivity down to -139 dBm@SF12, BW 125 kHz
• Frequency band support: EU868
• Housing with top cover, body, bottom cover with riveted motherboard standoff
• Includes Pi ready ID EEPROM, GPIO setup, and a device tree that can be automatically configured from vendor information
• Supports fully open-source code connected to a LoRaWAN server

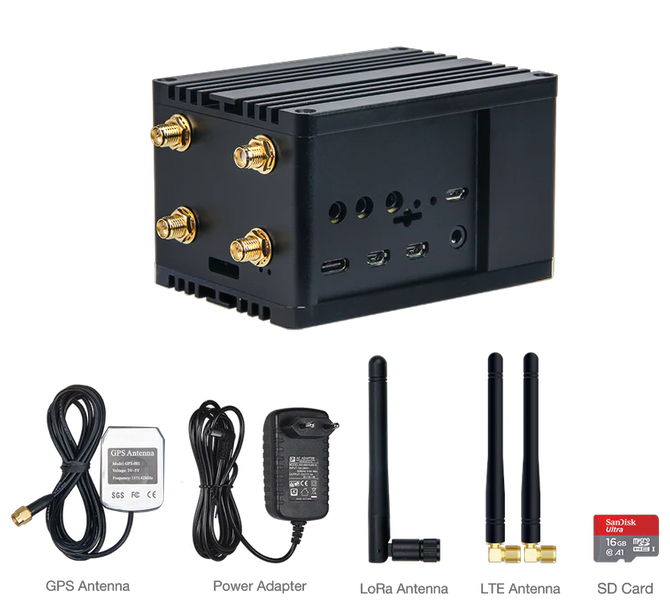

The kit includes:

• concentrator RAK7244
• 1x LPWAN antenna
• 1x GPS antenna
• 2x LTE antenna
• power adapter
• SD card
