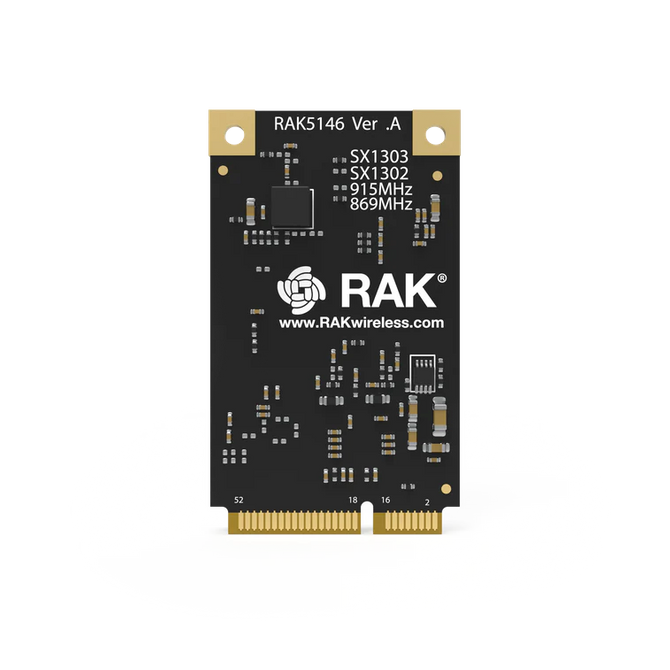

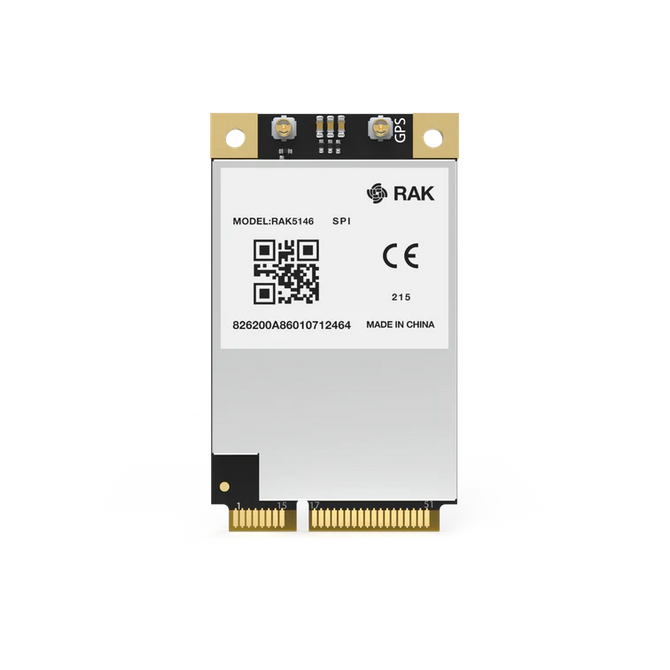

RAKwireless RAK5146-EU868-SPI-GPS

RAK5146 is an LPWAN Concentrator Module with mini-PCIe form factor based on Semtech SX1303 and SX126X for Listen Before Talk feature, which enables easy integration into an existing router or other network equipment with LPWAN Gateway capabilities. It can be used in any embedded platform offering a free mini-PCIe slot with SPI connection. Furthermore, ZOE- M8Q GPS chip is integrated onboard.

Features:

• Designed based on Mini PCI-e form factor
• SX1303 baseband processor emulates 8 x 8 channels LoRa packet detectors, 8x SF5-SF12 LoRa demodulators, 8x SF5-SF10 LoRa demodulators, one 125/250/500 kHz high-speed LoRa demodulator, and one (G)FSK demodulator
• 3.3 V Mini PCI-e, compatible with 3G/LTE card of Mini PCI-e type
• Tx power up to 27 dBm, Rx sensitivity down to -139 dBm @ SF12, BW 125 kHz
• Supports global license-free frequency band - EU868
• Supports SPI interface
• Fine Timestamp
• Built-in ZOE-M8Q GPS module

The kit includes:

• 1x RAK5146
• 1x iPEX LoRa antenna
• 1x Ipex GPS antenna
