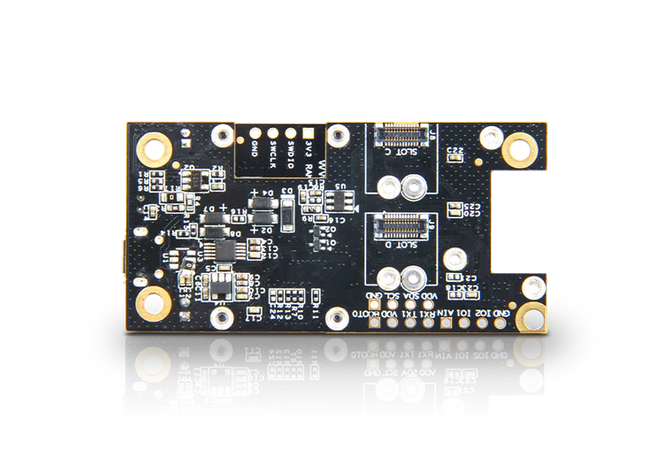

RAKwireless RAK4600-EU868 Evaluation Board

The RAK4600 evaluation kit from RAKWireless gives access to all GPIO ports, making it easy to configure the LoRa RAK4600 module. The kit includes the RAK4600 module and the RAK5005 baseboard.

Module features:

• Compact Form Factor: 23 x 15 x 2.5 mm
• 42 Pin Stamp Pad for PCB SMT mounting
• I/O ports: UART/I2C/GPIO (optional NFC interface)
• Temperature range: -40 °C to +85 °C
• Supply voltage: 2.0 ~ 3.6 V
• Frequency range: 863–870 MHz (EU), ISM and SRD systems
• Low-Power Wireless Systems with 7.8 kHz to 500 KHz Bandwidth
• Ultra-Low Power Consumption of 13.3 μA (down to 11.2 μA @ 2.0 V in sleep mode)
• LoRa Boost mode with 20 dBm output power
• BLE 5.0 (Tx power -20 to +4 dBm in 4 dB steps)

The kit includes:

• RAK4600 EVB
• Micro USB cable
• LoRa® antenna (iPEX)
• 2.4G antenna (iPEX)
• 2x 4-pin pin connector
• 9x connection cables
