RAKwireless RAK4600-EU868 Breakout Board

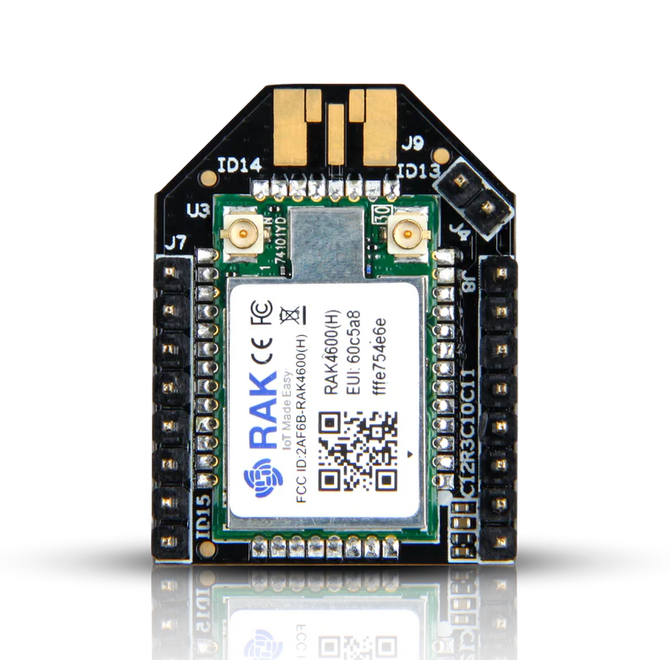

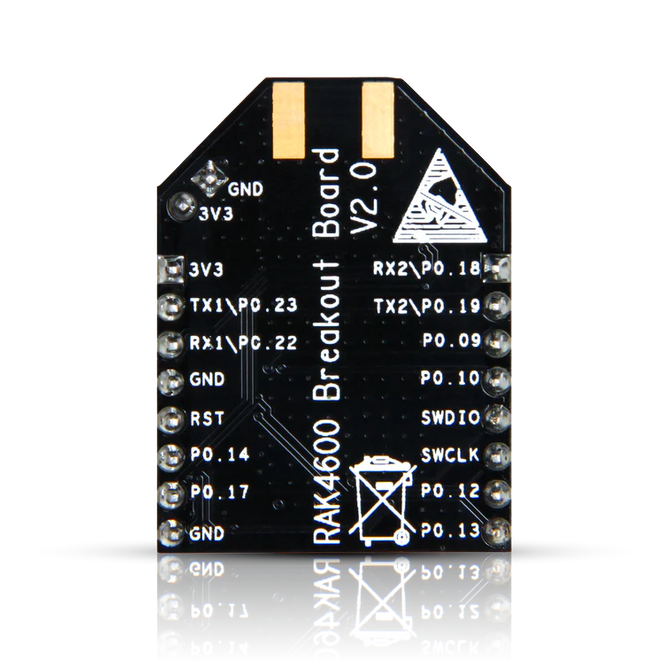

The RAK4600 Breakout Module is based on the nRF52832 MCU microcontroller and SX1276 chip. The product enables LoRaWAN and BLE 5.0 communications. In addition to extensive functionality, the model features low power requirements, i.e. 2 uA in sleep mode. The module is placed on a PCB board with pin-outs.

Features:

• 42 Pin Stamp Pad for PCB SMT mounting
• I/O ports: UART/I2C/GPIO (optional NFC interface)
• Temperature range: -40 °C to +85 °C
• Supply voltage: 2.0 ~ 3.6 V
• Frequency range: 863–923 MHz
• Low-Power Wireless Systems with 7.8 kHz to 500 KHz Bandwidth
• Ultra-Low Power Consumption of 13.3 μA (down to 11.2 μA @ 2.0 V in sleep mode)
• LoRa Boost mode with 20 dBm output power
• BLE 5.0 (Tx power -20 to +4 dBm in 4 dB steps)

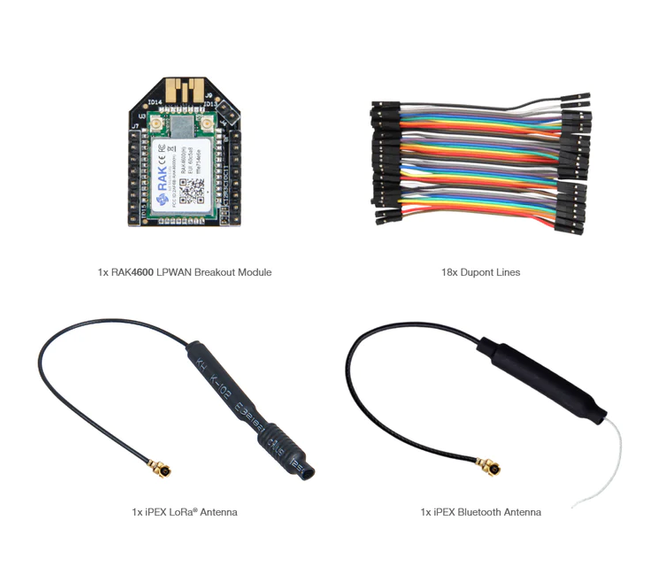

The kit includes:

• RAK4600 Breakout Board
• 1x LoRa® antenna with an IPEX connector
• 1x Bluetooth antenna with an IPEX connector
• 18x Dupont cable
