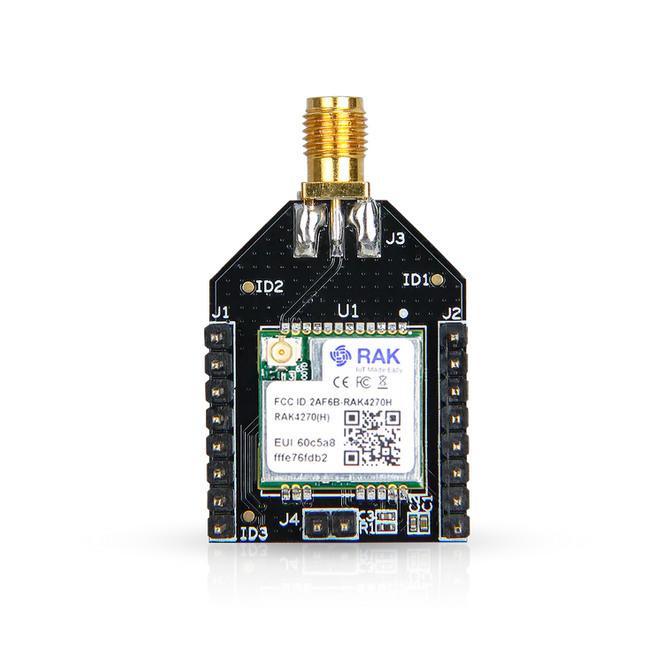

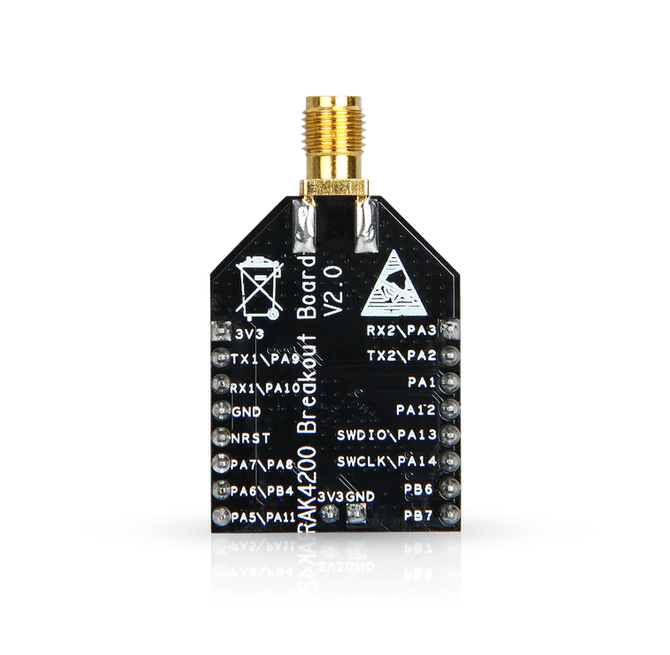

RAKwireless RAK4270-EU868 Breakout Board

Rak Wireless' LoRa RAK4270 LoRa® Breakout Module supports eight signal spreading modes (SF5 ~ SF12) and can adjust the bandwidth from 7.8 kHz to 500 kHz. The product features low power consumption (1.5uA in sleep mode), can transmit at 22 dBm and provides a receive sensitivity of -138 dBm.

The RAK4270 LoRa® Breakout Module is compliant with the LoRaWAN® 1.0.2 standard, providing stable long-distance data transfer with low power consumption. The solution will prove its worth in smart metering, agriculture, smart city or logistics tracking applications.

The module can be controlled by AT commands, sent via the UART interface.

Features:

• Compact form factor: 15.5 x 15 x 2.5 mm
• 20 pin stamp pad for PCB SMT board-to-board soldering
• I/O ports: UART/I2C/GPIO/ADC
• AT commands control interface
• Temperature range: -30 °C to +85 °C
• Supply voltage: 2.0 to 3.6 V
• LoRa bandwidth range of 7.8 kHz to 500 kHz, SF5 to SF12, BR=0.018~62.5 kb/s
• Ultra-Low Power Consumption of 2.31 μA (down to 1.61 μA @ 2.0 V) in sleep mode
• ARM Cortex-M0+ 32-bit RISC core
• 128 kbytes flash memory with ECC
• 20 kbytes RAM
• 6 kbytes of data EEPROM with ECC

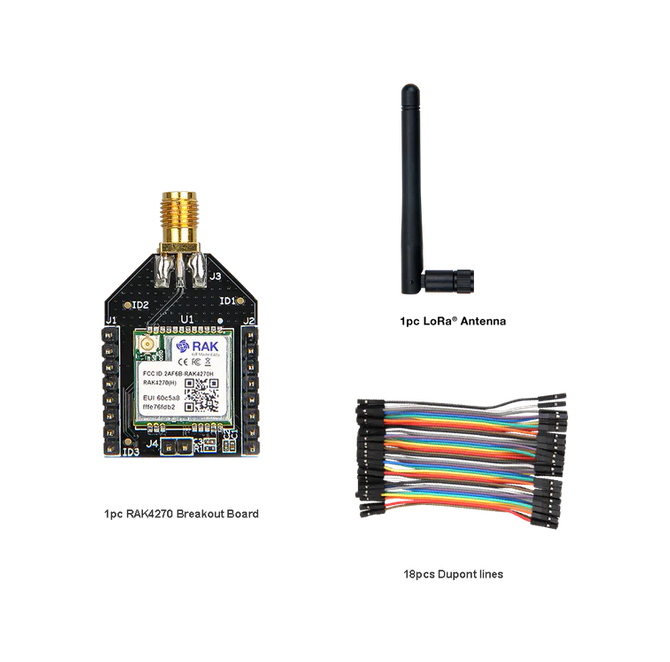

The kit includes:

• RAK4270 Breakout Board
• 1x LoRa antenna
• 18x Dupont cables

The products power supply is 3.3V.

RAK4270 is not recommended for new design, please use RAK3172 for new projects
