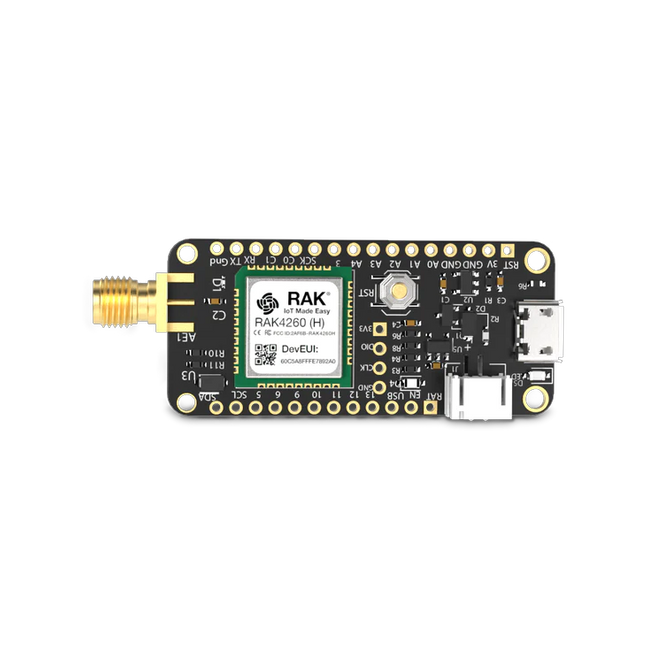

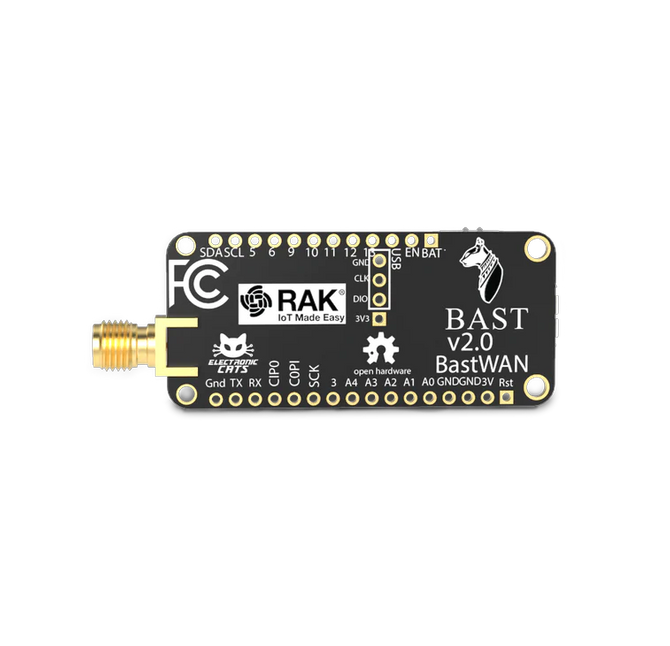

RAKwireless RAK3244-EU868 BastWAN Breakout Board

The RAK3244 BastWAN Breakout Board is specifically designed to be compatible with Feather format while still harnessing the power of RAK4260 module. The board itself has the RAK4260 as its core, which is a module that utilizes ATSAMR34J18B SiP. The high level of integration allows for outstanding performance: Lora TX Power of up to 20 dBm.

Features:

• Feather compatible with a feather-like weight of 5 grams
• RAK4260 @ 48 MHz with 3.3 V logic/power
• 256 KB of FLASH + 32 KB of RAM
• 32.768 kHz crystal for clock generation & RTC
• 3.3 V regulator with 500 mA peak current output
• USB native support, comes with USB bootloader and serial port debugging
• Up to 20 GPIO pins
• Hardware Serial, hardware I2C, hardware SPI support
• PWM outputs on all pins
• 6 x 12-bit analog inputs
• 1 x 10-bit analog output (DAC)
• Built-in 100 mA LiPoly charging port, with LED indicator
• Programmable built-in LED for customized applications
• Power/enable pin
• Four (4) mounting holes
• Reset button

The kit includes:

• 1x BastWAN Development Board
• 1x Antenna for LoRa
• 1x Micro-USB cable
• 1x Set of Jumper wires
