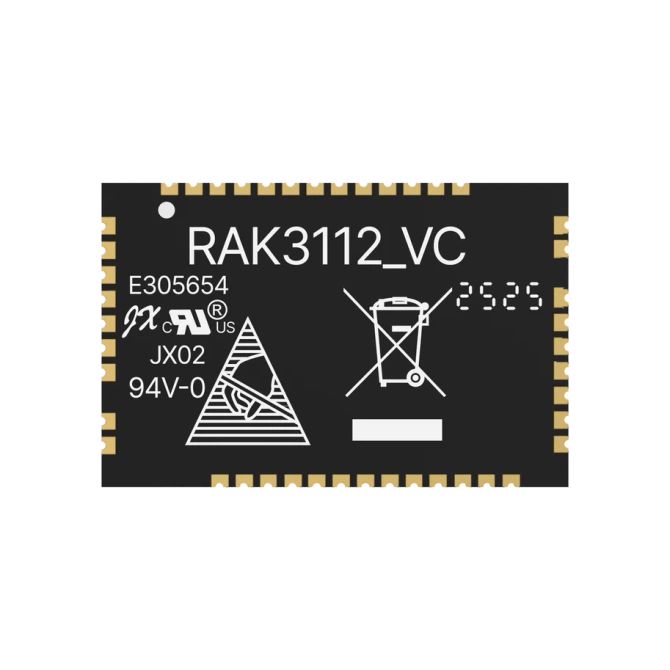

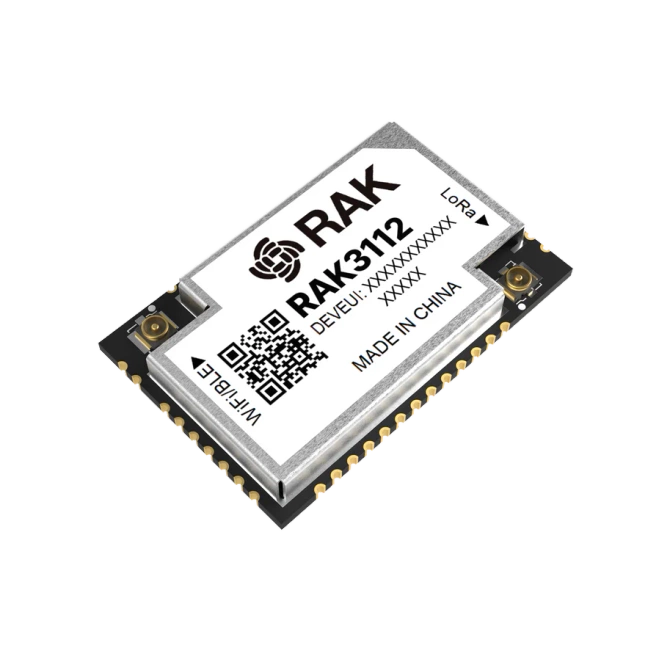

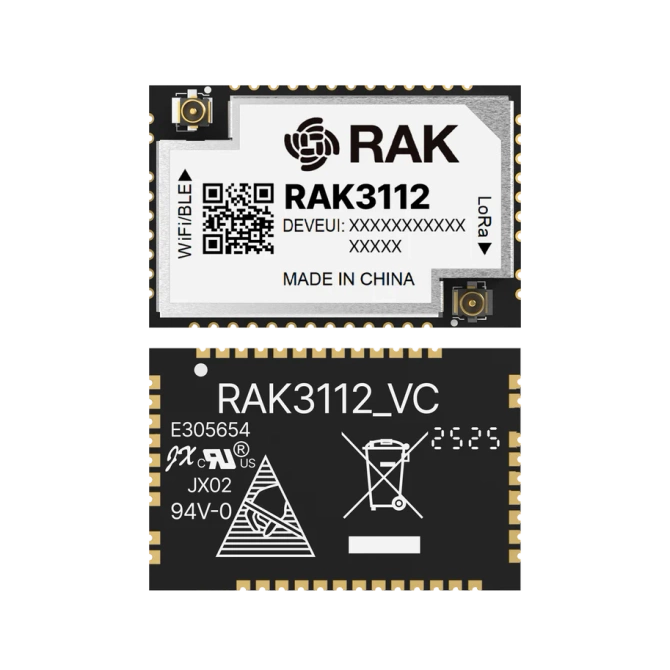

RAKwireless RAK3112 - EU868

RAK3112 is a dual-core, energy-efficient module for LoRaWAN that combines an SX1262 LoRa transreceiver with an ESP32-S3 chip providing WiFi and BLE connectivity and supporting artificial intelligence. Designed for next-generation IoT devices, this module enables developers to create smarter, faster, and better-connected edge systems. It is suitable for real-time data processing, graphical interfaces, or long-distance network communication. Antenna connector type - IPEX MHF4.

Key features of the RAK3112 ESP32 + SX1262L LoRa Module:

• Powered by ESP32-S3: 240 MHz dual-core processor with vector instructions, AI acceleration, and LCD controller support.
• Integrated SX1262 LoRa Transceiver: High-performance, long-range communication.
• 3-in-1 Connectivity: LoRa + WiFi + BLE.
• Edge-AI Support: Supports lightweight neural networks (ESP-DL).
• Ideal for Meshtastic: Mesh networking ready platform for secure, decentralized communication.
• On-board Flash Memory: Up to 16 MB for custom firmware and storage.
• Compact Form Factor: Stamp module measuring 15mm x 23mm x 3mm.
• Supply Voltage: 3.0 V ~ 3.6 V.
• Operating Temperature: -40 °C to +85 °C
• Firmware: Programmable with ESP-IDF, Arduino, PlatformIO
