RAKwireless RAK2287-EU868-SPI-GPS

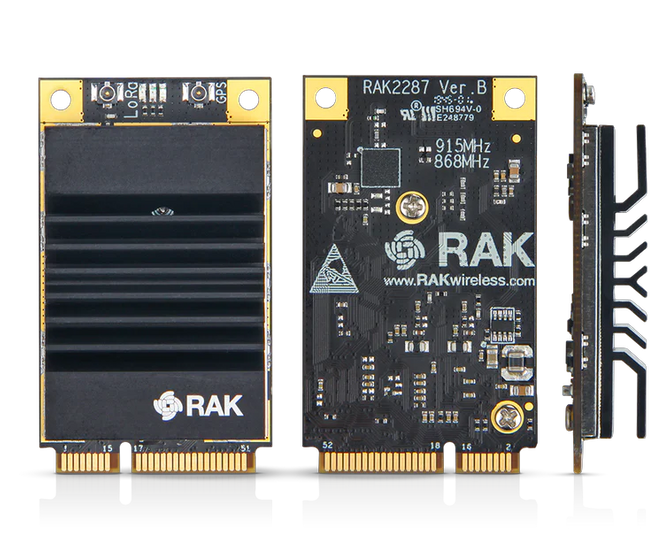

The RAK2287 is a LoRa concentrator module in the form of a board with a miniPCIe connector. This model offers the possibility to easily extend an existing application with LoRaWAN connectivity.

Key features:

• Designed based on Mini PCI-e form factor with heat sink
• SX1302 base band processor emulates 8 x 8 channels LoRa packet detectors, 8 x SF5-SF12 LoRa demodulators, 8 x SF5-SF10 LoRa demodulators, one 125/250/500 kHz high-speed LoRa demodulator and one (G) FSK demodulator
• 3.3 V Mini PCI-e, compatible with 3G/LTE card of Mini PCI-e type
• Compatible with 3G/LTE card of Mini PCI-e type
• Tx power up to 27 dBm, Rx sensitivity down to -139 dBm @ SF12, BW 125 kHz
• Supports SPI interfaces
• Built-in ZOE-M8Q GPS module

The kit includes:

• 1x RAK2287 SPI
• 1x iPEX LoRa antenna
• 1x iPEX GPS antenna
