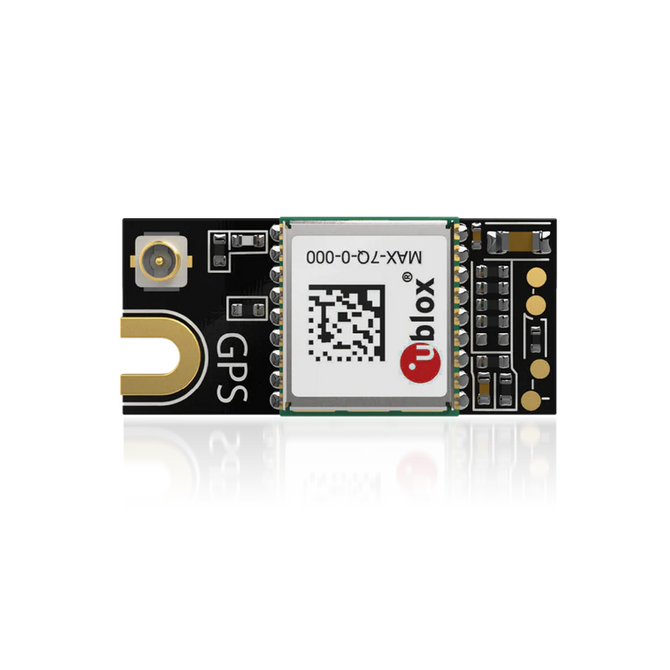

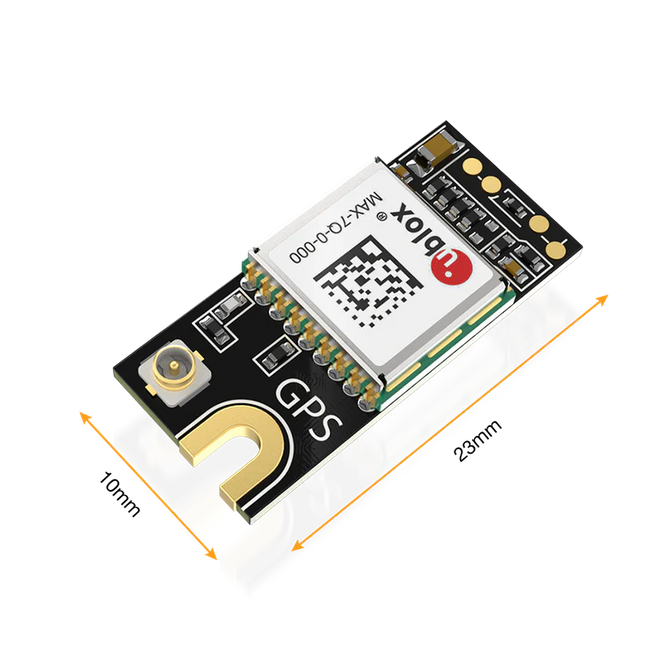

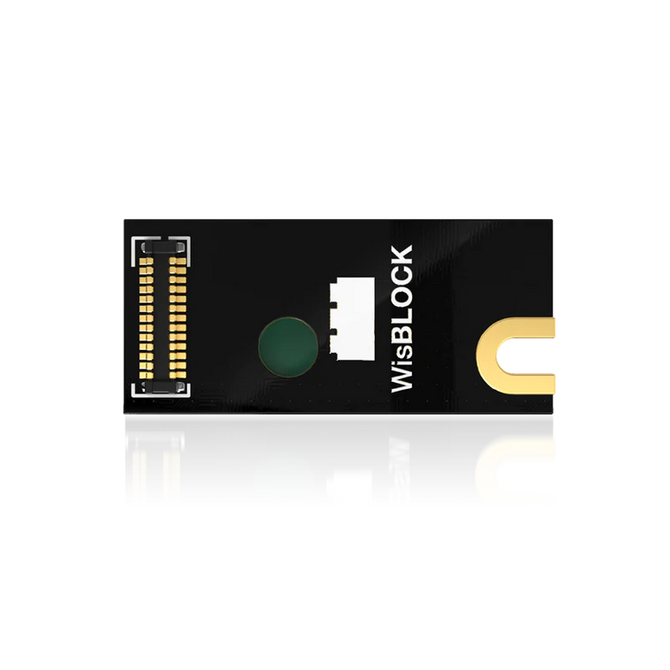

RAKwireless RAK1910

The RAK1910 module from Rak Wireless is part of the WisBlock family, where a personalised LoRa development tool can be built using a base board and dedicated modules. The RAK1910 provides location using GPS and GLONASS technologies.

RAK1910 provides precise location with an accuracy of 2.5m and fast position correction.

Key heatures

• Chipset: u-Blox MAX-7Q
• Voltage Supply: 3.3 V
• Current Consumption: 15 uA to 22 mA
• High accuracy of 2.5 m
• Update rate: 10 Hz
• Velocity accuracy: 0.1 m/s
• Heading accuracy: 0.5 degrees
• Fast location fix. 29 sec from cold start to first fix. 1 sec from hot start
• GPS and GLONASS satellite support
• Module size: 23 x 10 mm
