RAKwireless RAK19014

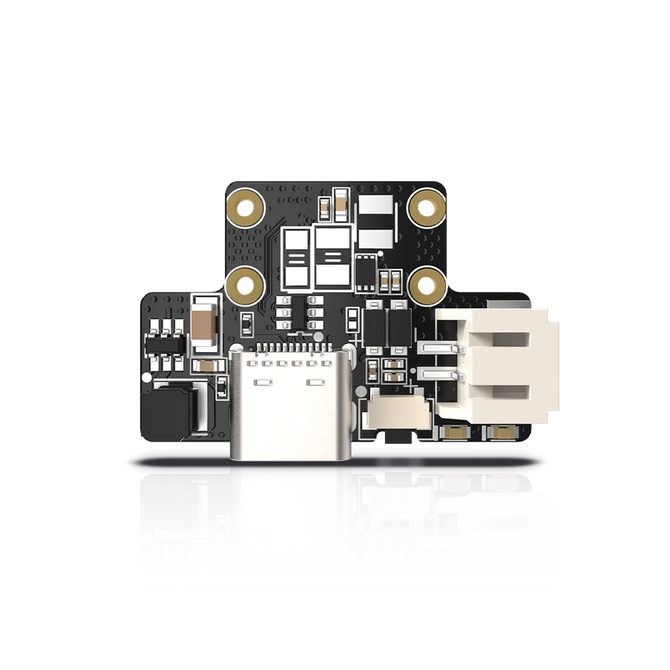

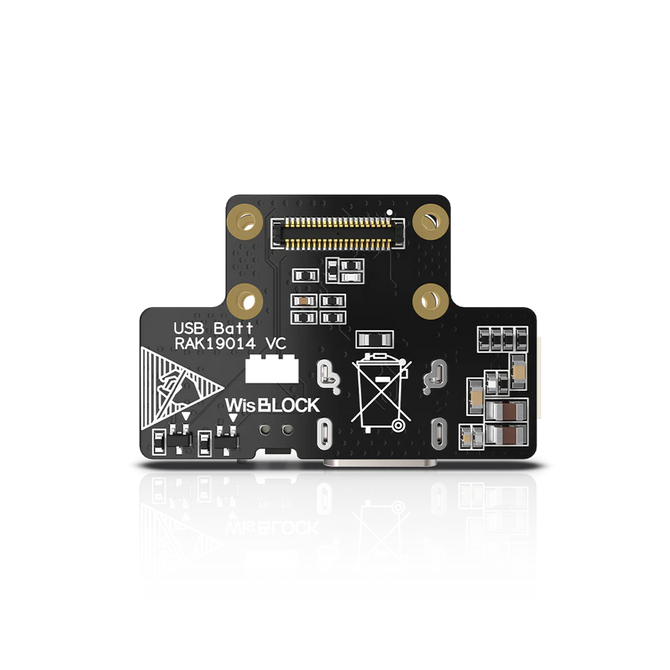

RAK19014 WisBlock Battery USB Power Slot Module is a modular power board comprises of a battery connector (no charging circuitry on-board) and a USB Type-C connector used for reprogramming the WisBlock Core. It is designed to be used with WisBlock Base Board with Power Slot via the 40-pin WisBlock connector. RAK19014 is optimally designed to support very low-power applications since it only has a USB, battery connector, and 3.3 V switching regulator in the circuit removing unnecessary components that cause extra current consumption.

    Key features:

  • Designed for battery-only powered applications
  • Support reprogramming of WisBlock Core via USB connector
  • High-efficiency switching regulator
  • Optimized for low-power devices
  • Module size: 30 x 20 mm
