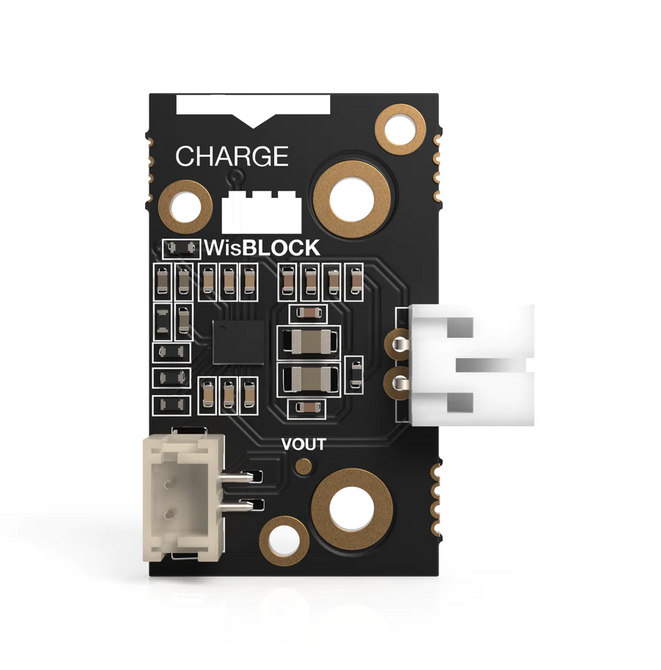

RAKwireless RAK19006

RAK19006 WisBlock Wireless Charge Module is designed to be a part of the battery charger. It is highly efficient, Qi-compliant, and has a single-chip wireless power receiver and charger. It integrates the receiver and linear charger and supports up to 5 W applications. This board can be connected with the WisBlock Base board like RAK5005-O through the IO slot or two pogo pins. The chip supports wireless charge and direct battery charging.

Features:

• WPC 1.2.4 compliant wireless power receiver
• JEITA compatible charge
• Ultra-low leakage current without transmitter
• Wireless and wired charge
• OVP, OCP, and OTP protection
• Supports up to 5 W applications
• Chipset: ConvenientPower CPS3008
• Module size: 15 X 25 mm
