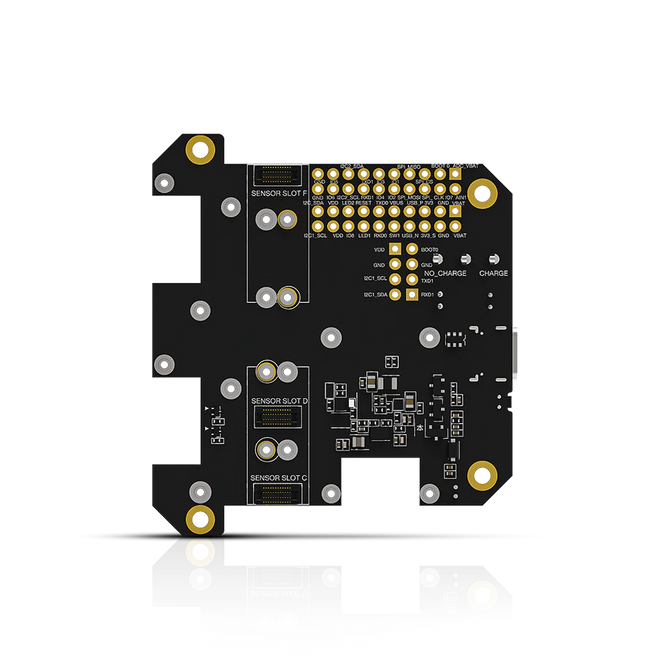

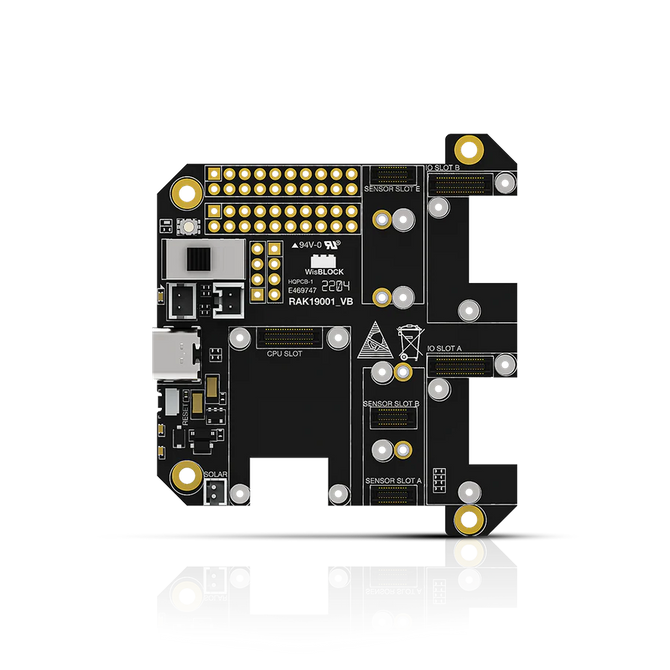

RAKwireless RAK19001

RAK19001 is a WisBlock Base board that connects WisBlock Core and WisBlock Modules. It provides the power supply and interconnection to the modules attached to it. It has one slot reserved for the WisBlock Core module, two IO slots, and six sensor slots A to F for WisBlock Modules. Also, there are two 2.54 mm pitch headers that expose all key input-output pins of the WisBlock Core that includes UART, I2C, SPI, and many IO Pins.

For convenience, there is a Type-C USB connector that is connected directly to WisBlock Core MCU’s USB port (if supported) or to a USB-UART converter depending on the WisBlock Core. The USB-C connection can be used for uploading firmware, serial communication, and charging A rechargeable battery. RAK19001 also includes a slide switch to select between rechargeable and non-rechargeable batteries.

Key features:

• Flexible building block design, which enables modular functionality and expansion
• High-speed interconnection connectors in the WisBlock Base board to ensure signal integrity

Multiple headers and modules slots for WisBlock modules

• Two (2) IO slots
• Six (6) sensor (A to F) slots
• All key input-output pins of WisBlock Core are exposed via headers
• Access to various communication bus via headers: I2C, SPI, UART, and USB
• One user-defined push button switch

Power supply

• Supports both 5 V USB, 3.7 V rechargeable battery, and 3.3 to 5.5 V non-rechargeable battery as power supply
• The power supply for the WisBlock modules boards can be controlled by the WisBlock Core modules to minimize power consumption
• Slide switch to select between a rechargeable or non-rechargeable battery

Size

• 60 x 67 mm
