RAKwireless RAK14007+RAK14013

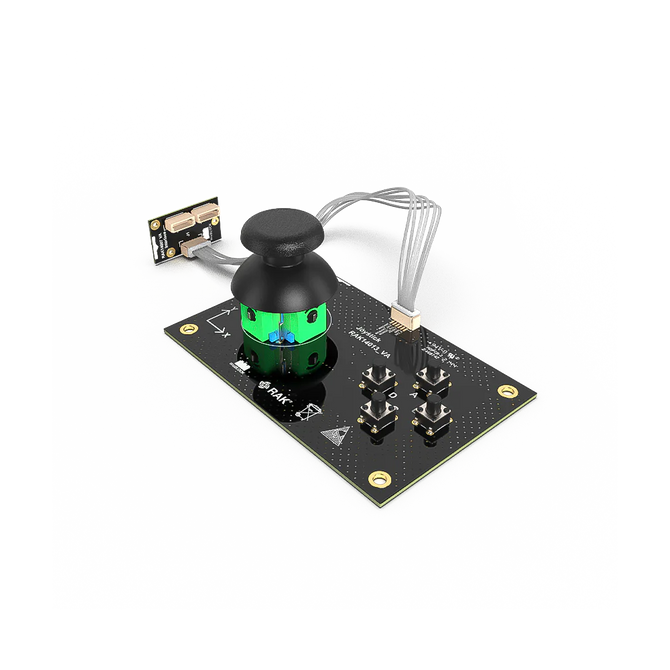

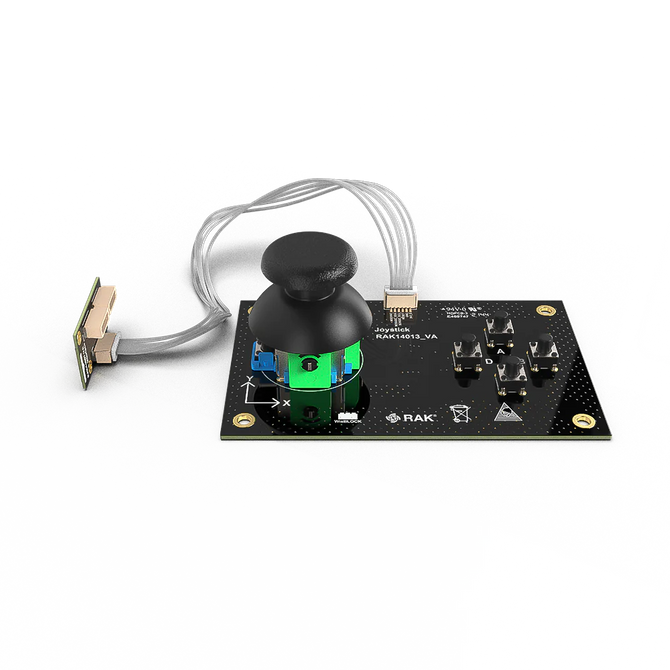

RAK14007+RAK14013 joystick pad is made with an interface board and a separate module with a joystick and buttons. Even it looks like a video game controller, it can be used in many different IoT applications as HMI to control equipment with WisBlock.

RAK14013 is a joystick module with embedded MCU based on ATTINY441-SSU from Atmel. It has four common tactile push buttons and a rotary 2-axis analog joystick. The status of the buttons and voltage readings of an analog joystick is monitored by the MCU and converted to digital data via I2C interface. RAK14013 doesn't have a WisBlock standard connector so you need a RAK14007 adapter board to plug it into to WisBlock Base module. The RAK14013 communicates to the WisBlock Core via I2C interface.

RAK14007 is an Interface module for connecting other WisBlock modules (like RAK14013) to the WisBlock system. It has one standard WisBlock IO connector and one connector for other WisBlock modules. With RAK14007 and a cable, some of the WisBlock modules can work out of the WisBlock Base board.

RAK14013:

• Joystick module and push buttons
• I2C interface
• 3.3 V Power supply
• Chipset: ATMEL ATTINY441-SSU
• Module Size: 54 mm x 85 mm

RAK14007:

• A separate joystick PCB module RAK14013 is required
• One (1) available connector for RAK14013 WisBlock Joystick Module
• Module size: 15 x 25 mm
