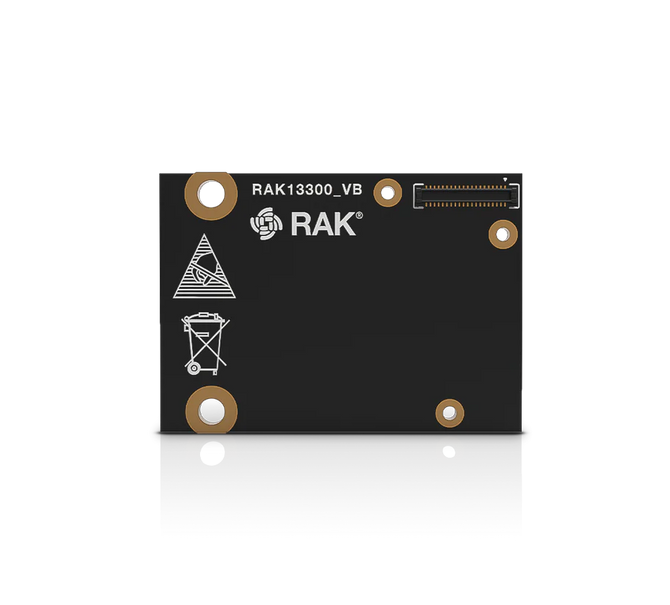

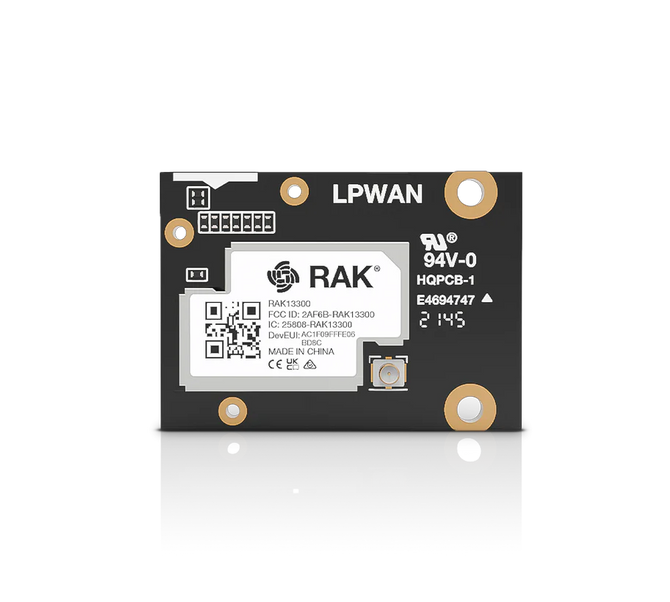

RAKwireless RAK13300-EU868

RAK13300 is a LoRa module based on the SX1262 LoRa chip. It provides an easy-to-use, small-size, and low-power solution for long-range wireless data applications. The module complies with LoRaWAN standards and supports LoRa point-to-point communication. It can easily connect to different LoRaWAN server platforms like TheThingsNetwork (TTN), Chirpstack, Actility, etc..

Key features:

• Based on Semtech SX1262 LoRa chip
• LoRaWAN Specification compatible
• Supports the following bands: EU868
• LoRaWAN Activation by OTAA/ABP
• LoRa Point-to-Point (P2P) communication
• Ultra-Low Power Consumption
• Supply Voltage: 2.0 V ~ 3.6 V
• Temperature Range: -40° C ~ 85° C
• Module Size: 25 mm x 35 mm
