RAKwireless RAK13004 - interface module
RAKwireless RAK13004 - interface module
RAKwireless RAK13004 - interface module
RAKwireless RAK13004 - interface module
RAKwireless RAK13004 - interface module
RAKwireless RAK13004 - interface module

RAKwireless RAK13004 - interface module

ChipNXP PCA9685
Product length in millimeters35
Product width in millimeters22
Number of pins40
Size
uniwersalny
excl. VAT
24,14 zł
gross
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Compare
Product Data Sheet - RAK13004
Ask us about the product
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Order a sample

Offer addressed to companies only. We will contact you within 48h.

Details

Parametry
Find similar products
Brand
RAKwireless
Symbol
SKU: 100027
Producer code
5900000776972
Series
WisBlock
ChipChip
NXP PCA9685
Product length in millimetersProduct length in millimeters
35
Product width in millimetersProduct width in millimeters
22
Number of pinsNumber of pins
40
I2C interfaces
1
VoltageVoltage
2,3 - 5,5V
Temperature rangeTemperature range
-40...+85°C
Search

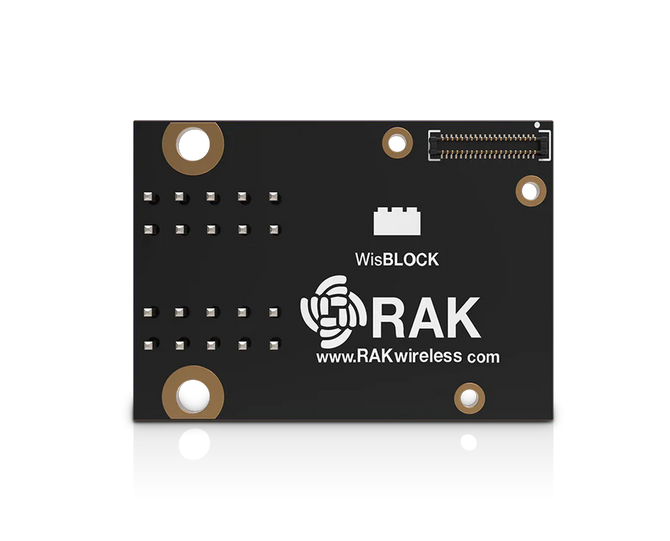

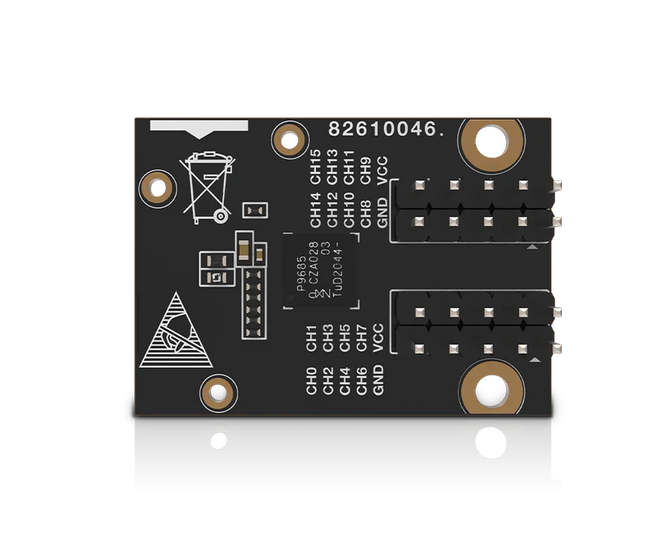

RAKwireless RAK13004

RAK13004 is a PWM expander module that can be mounted to the IO slot of WisBlock Base board. It can be controlled 16-channel LED, and the module uses PCA9685 from NXP, I2C interface.

    Key features:

  • 16 LED drivers connector
  • 1 MHz Fast-mode Plus compatible I2C-bus interface
  • 4096-step (12-bit) linear programable brightness per LED
  • LED output frequency typically varies from 24 Hz to 1526 Hz
  • Supports hot insertion
  • Low Standby Current
  • 5.5 V tolerant inputs
  • Operating Voltage: 2.3 V to 5.5 V @ -40 °C to +85 °C
  • Chipset: NXP Semiconductors PCA9685
  • Module size: 25X35 mm
