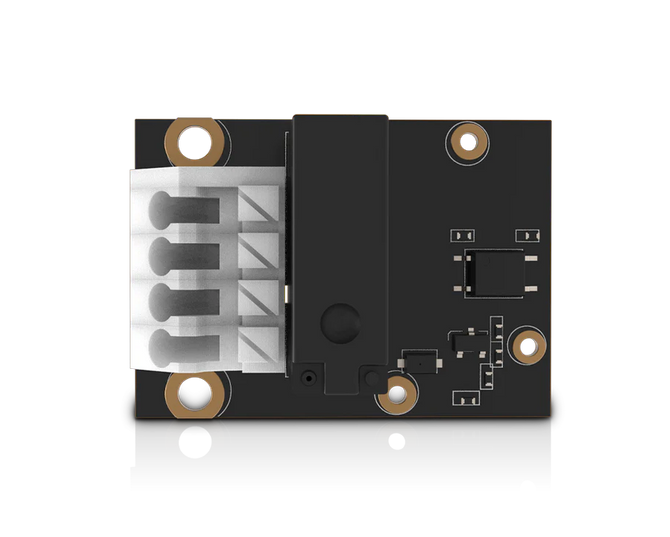

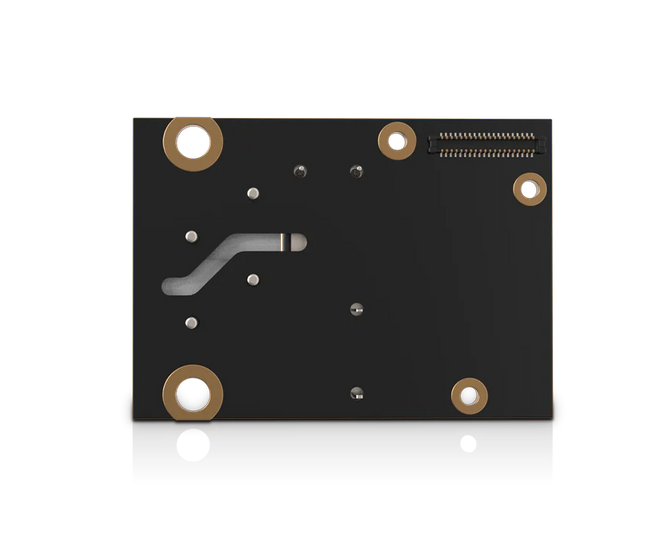

RAKwireless RAK13001

RAK13001 is a WisBlock Interface module which extends the WisBlock system to be used on isolated digital input and output applications. There is one digital output that is isolated by an electromechanical relay and one digital input isolated by an opto-couple. The isolated input can be configured as wet contact (default mode) or dry contact. RAK13001 digital output is used to programmatically switch on/off devices operating at high voltage or current applications.

Key features:

• One relay isolated output
• One opto-couple isolated input
• The input supports wet contact(default mode) or dry contact
• The isolation between internal and external is up to 2500 VDC
• The output of relay supports 30 VDC/2 A rating
• The input of opto-couple supports 12-24 V
• Module size: 25 X 35 mm
• Chipset: HONGFA HF46F
