RAKwireless RAK12501

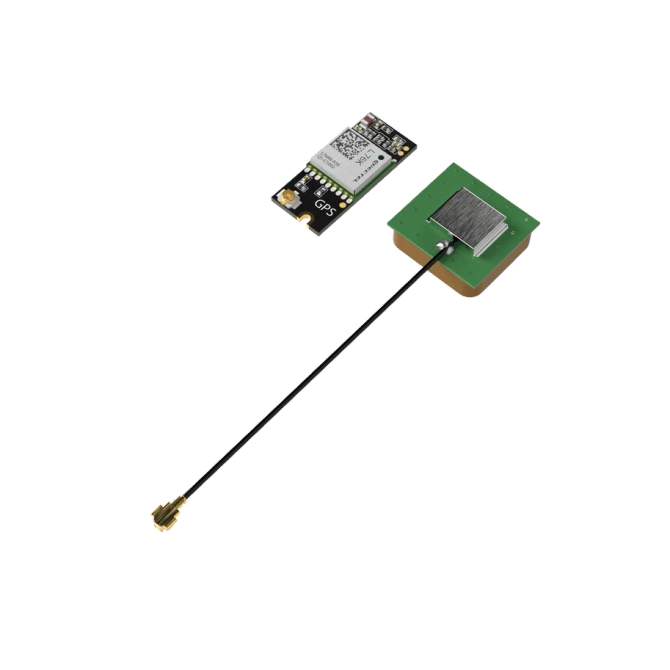

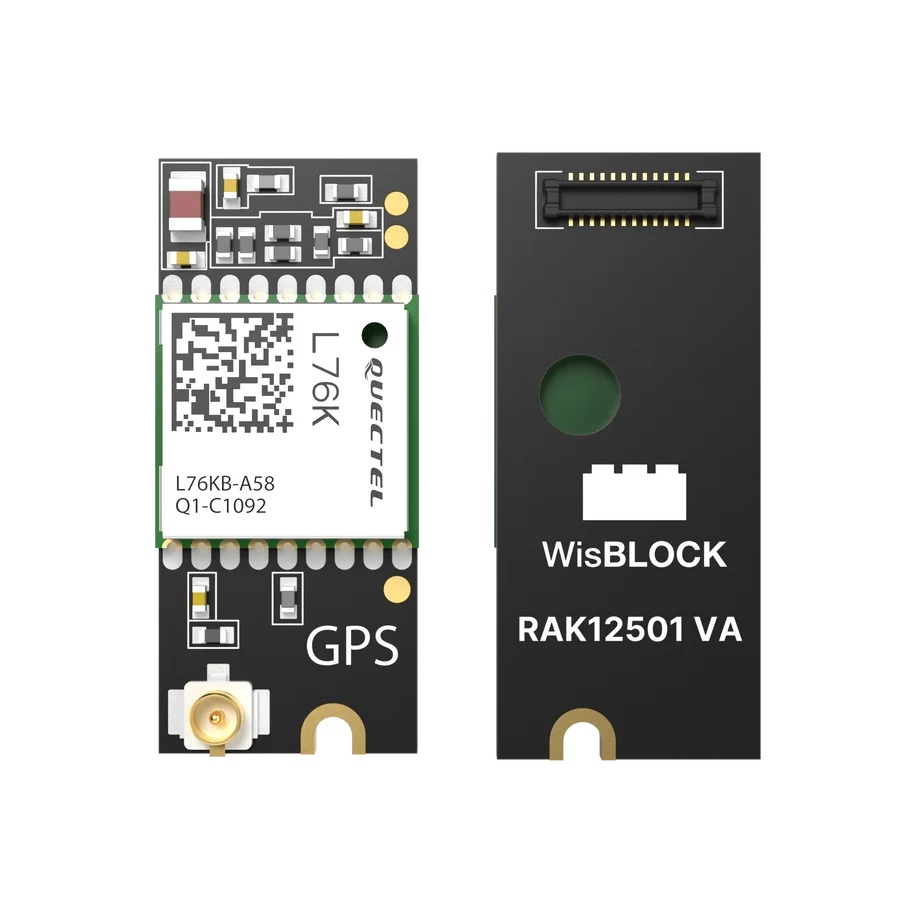

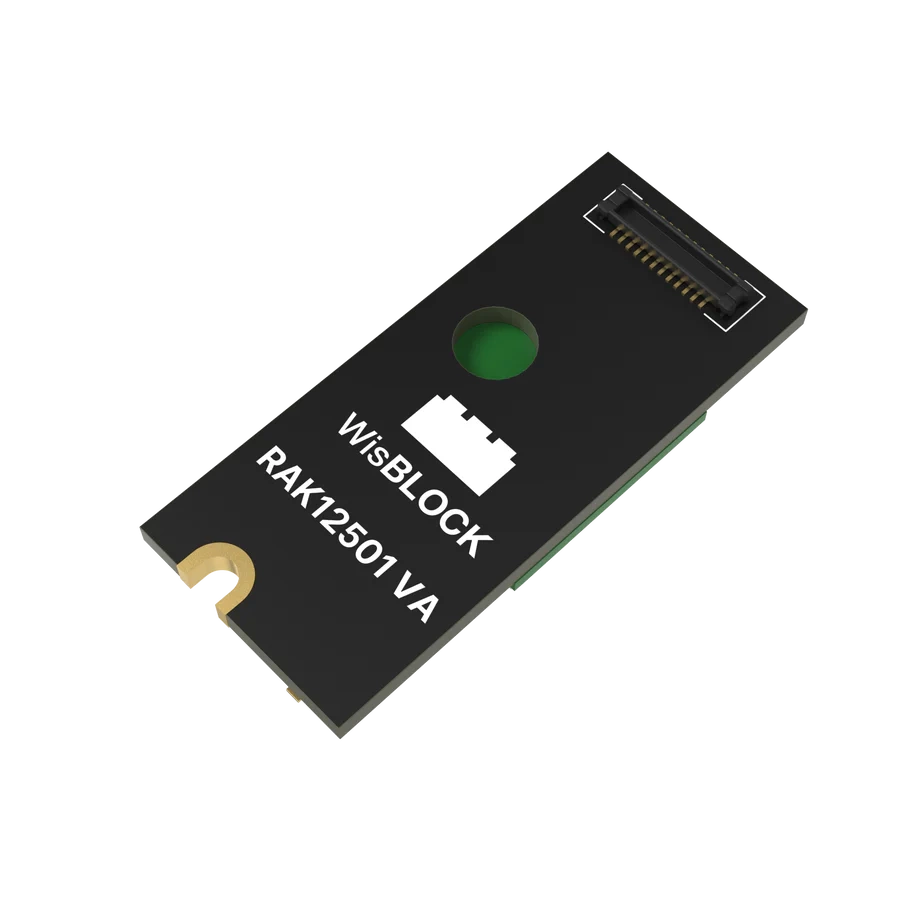

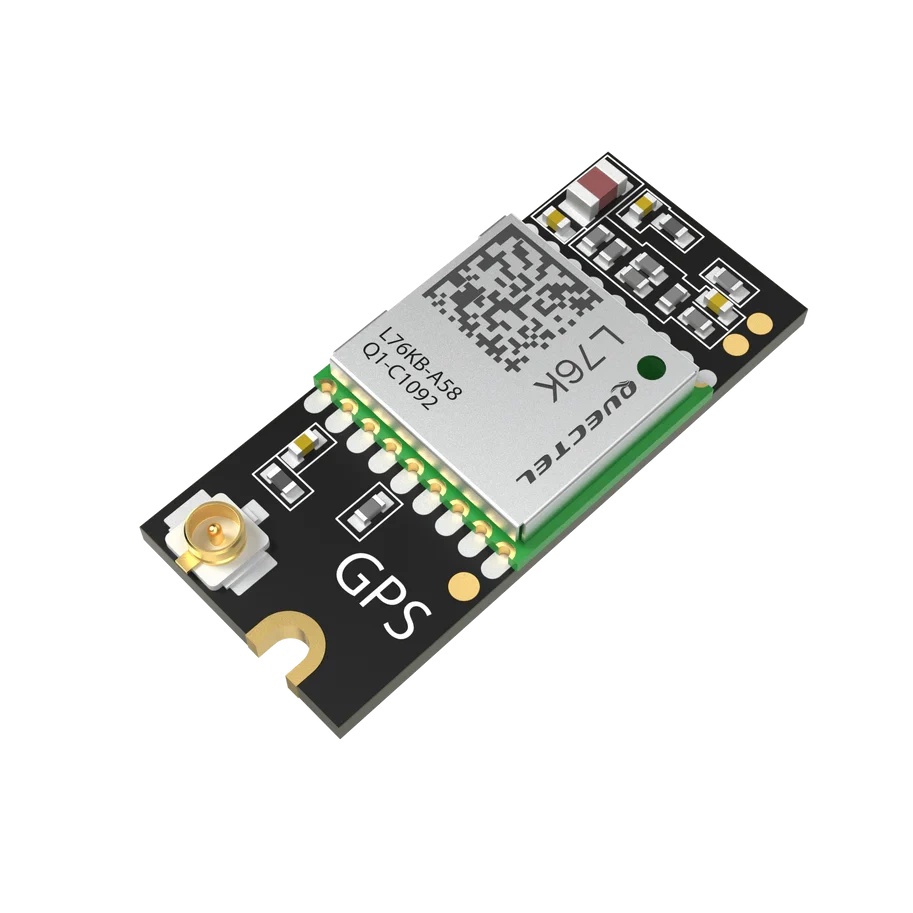

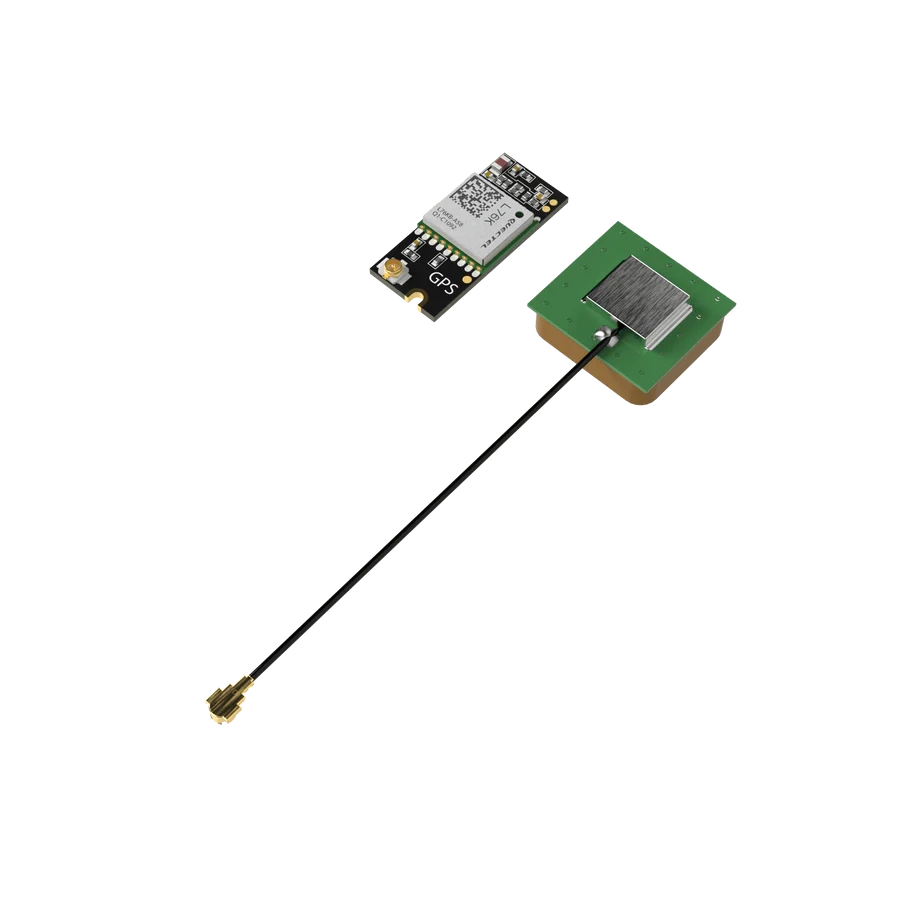

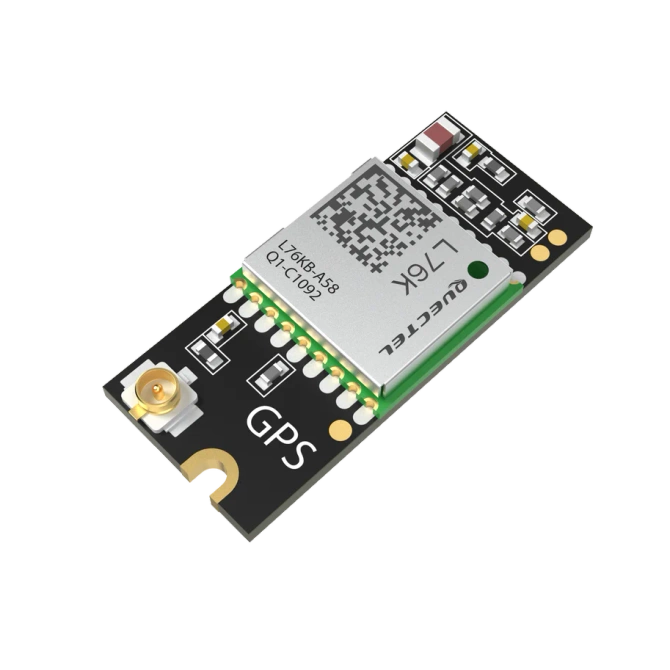

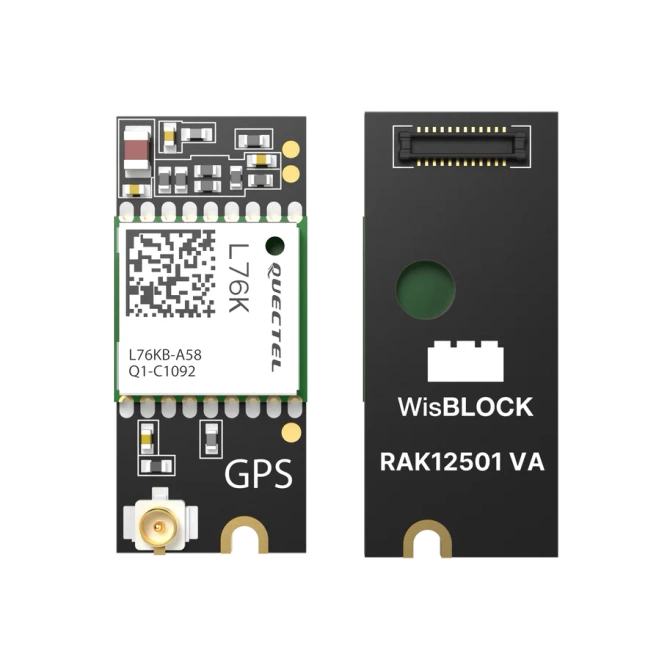

The RAK12501 WisBlock GNSS Location Tracker Module uses the Quectel L76K and is designed to for a IoT solutions. It must be combined with a WisBlock Core and a Base module to work as an LPWAN tracker device.

The RAK12501 supports variety of satellite constelations, such as GPS, GLONASS, QZSS, and BeiDou. The module features high performance, high sensitivity, and minimal acquisition time. A suitable module for your low-power IoT solution needs. It works with standard protocols over UART connection to the MCU.

Key Features of RAK12501 Module

• Uses the GNSS Module: Quectel L76K
• Supports 33 tracking channels, 99 acquisition channels, and 210 PRN channels
• Log position information to internal flash memory
• Supports GPS, GLONASS, Galileo, BDS and QZSS satellite systems
• Serial communication to WisBlock Core support with NMEA 0183 protocol
• High sensitivity, -165 dBm @ Tracking, -148 dBm @ Acquisition
• 1Hz update rate
