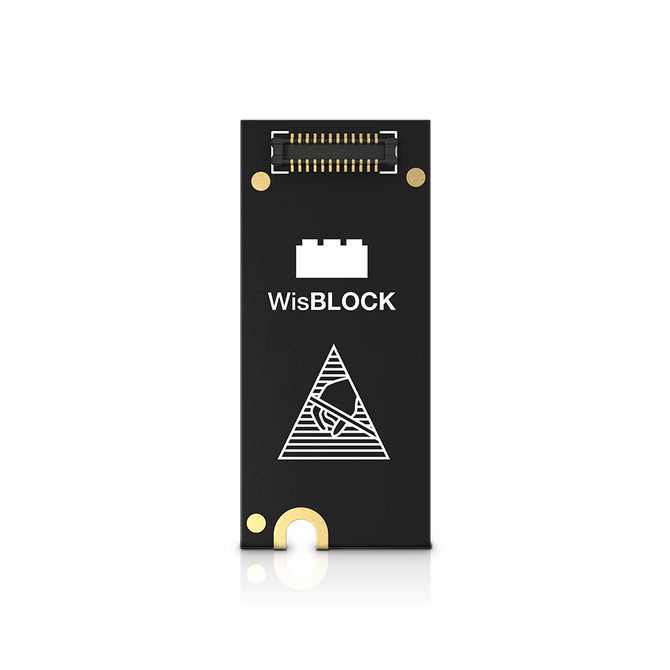

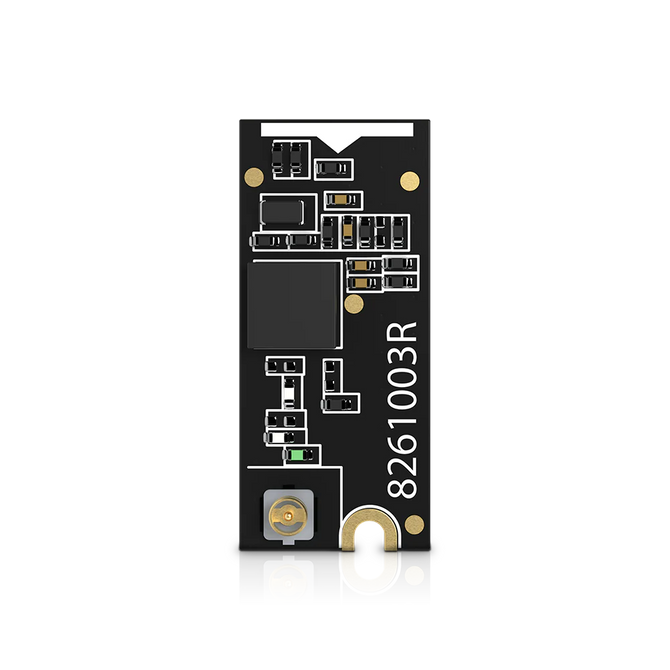

RAKwireless RAK12500

RAK12500 WisBlock GNSS Location Module is designed to be part of a production-ready IoT solution in a modular way and must be combined with a WisBlock Core and a Base module. The RAK12500 uses the u-blox ZOE-M8Q module. It supports a wide variety of satellite data protocols such as GPS, GLONASS, QZSS, and BeiDou. This ensures the retrieval of precise location data. The module features exceptional performance, high sensitivity, and minimal acquisition time. A very suitable module for your low-power IoT solution needs.

Key features:

• Uses the very accurate GNSS Module: u-blox ZOE-M8Q chip
• Location Accuracy of ±2.5 meter
• Velocity Accuracy of ±0.05 m/s
• GPS, GLONASS, QZSS, and BeiDou Satellite support
• Serial and I2C communication to WisBlock Core support
• 10 Hz Update Rate
• 29 seconds Location Fix from Cold Start, 1 second from Hot Start
• Operating Voltage: 3.3 V
• Operating Current: < 15 µA
• Chipset: u-blox ZOE-M8Q
• Module Size: 10 mm x 23 mm
