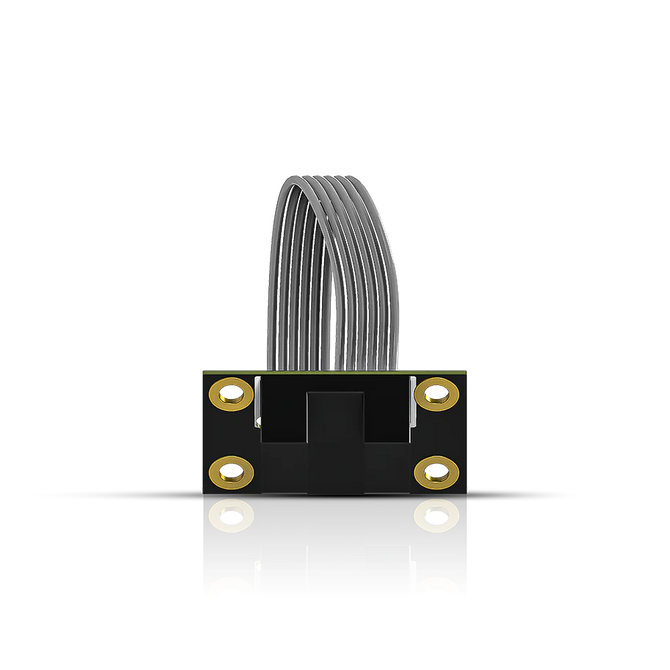

RAKwireless RAK12028+RAK12031 Fork Sensor

RAK12028+RAK12031 is a light based sensor in a fork shape configuration based on Omron EE-SX1041. It is used together with a code disc for motor speed measurement. It can be also be used with a linear code bar to measure position and speed of a linear movement.

RAK12031:

• Operating Voltage: 3.3 V
• Chipset: Omron EE-SX1041
• T-Fork module
• Detect presence of small moving objects
• Method for measurement velocity with grating
• Slot width: 5 mm
• Slot depth: 8.2 mm
• Module size: 15 x 25 mm

Key features:

• A separate sensor PCB module RAK12031 is required
• Module size: 10 x 10 mm
